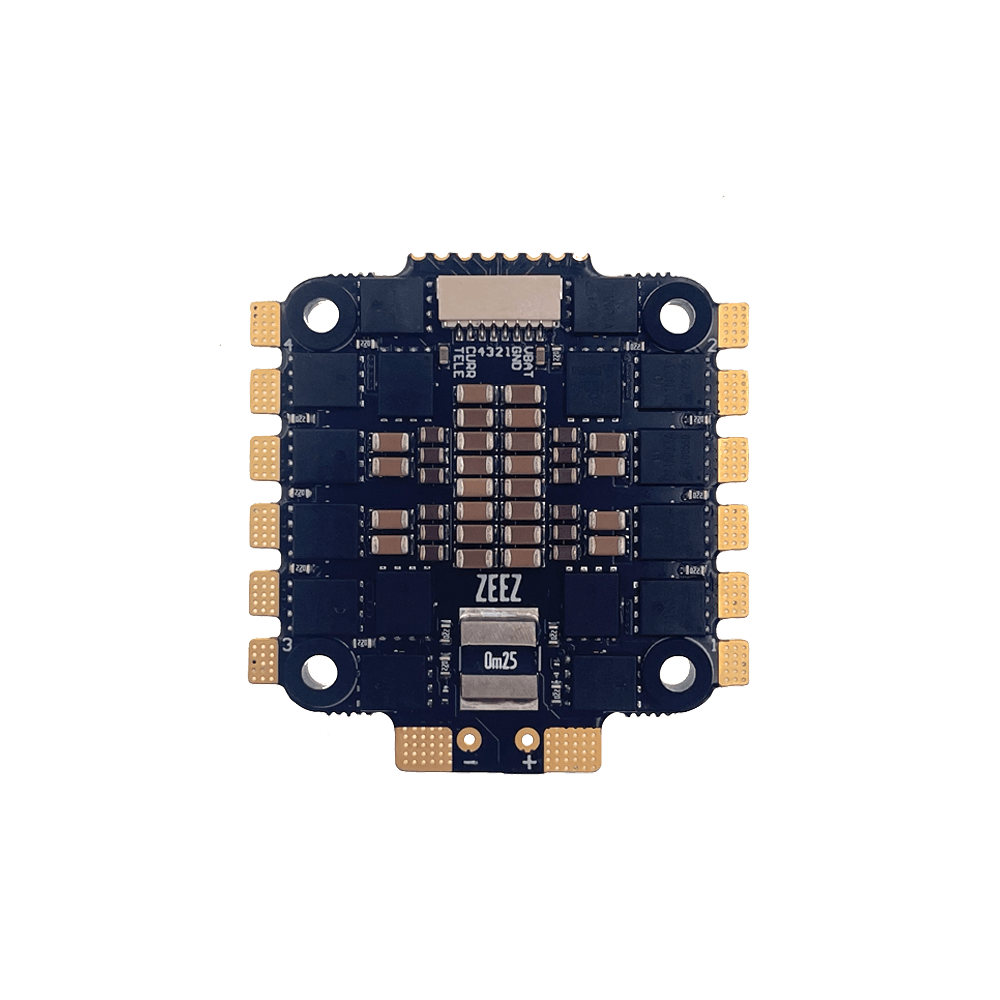

Zeez 55A 4in1 ESC V3

  • Sale

  • Regular price $119.99

Tax included. Shipping calculated at checkout.
Order in 0H, 44M, 42 Seconds (before 3pm AEST) for same day despatch.

The ZEEZ 55A 4-in-1 ESC is an improved version of last year’s 3030 ESC. We took all the positive feedback from our users around the world along with the new advancements in technology and we truly raised the bar with this one.

The ZEEZ 55A 4-in-1 ESC comes with the fastest MCU available which is fully supported by BLHELI32, the STM32G0. It supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).

We took advice from some of our newer pilots and have improved the solder pads by giving them more clearance, which makes soldering as easy as 1,2,3. We also added additional copper around the pads for greater strength.

• LiPo Power input: 3S-6S
• Cont. Current: 55Amps x 4
• Burst Current: 75Amps x 4
• Input wires: 12AWG-130mm* (Red/Black)
• Output Wire: solder pads and 8P connector
• Mounting holes: 30.5x30.5mm
• ESC Firmware: BLHeliSuite32
• High quality MOSFET with RDS(on) 0.75 mΩ 30V

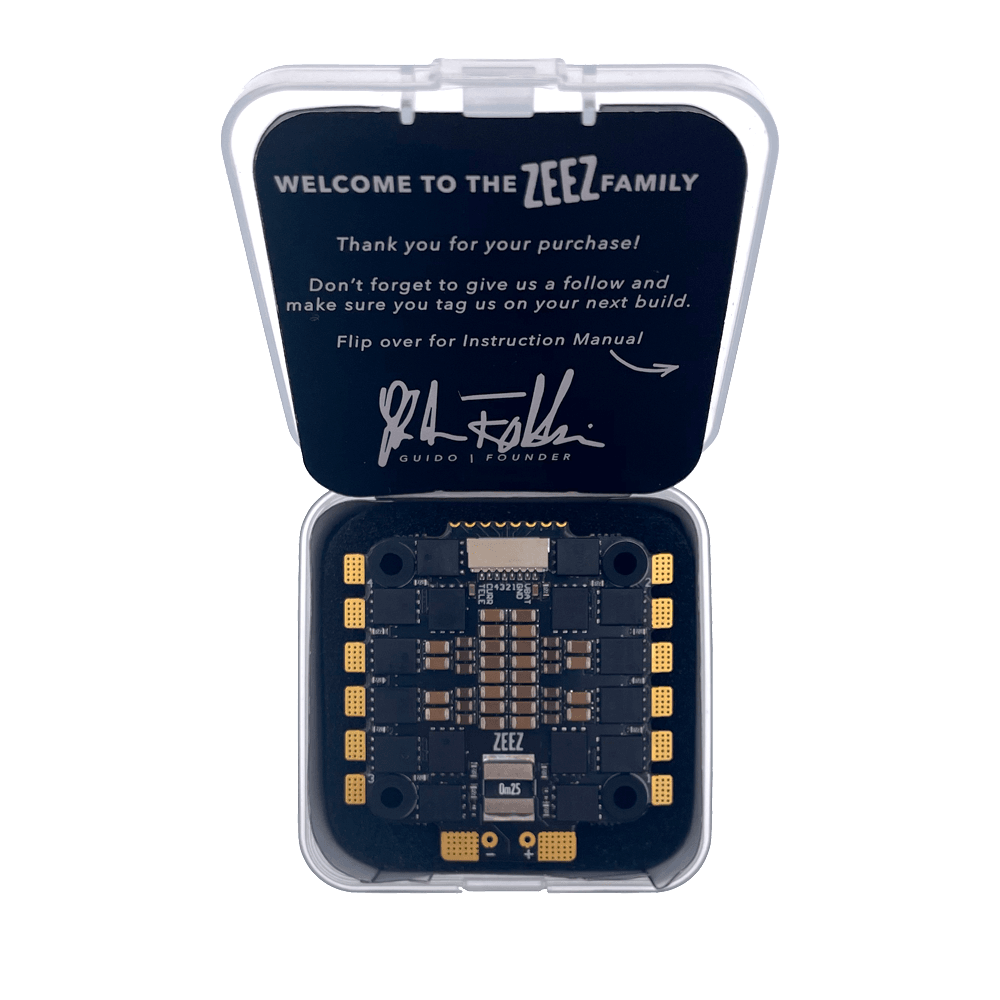

Package includes:
• (1X) ZEEZ 55A 4-in-1 ESC
• (4X) Aluminum Standoff
• (1X) ESC to Flight Controller 8 Pin to Servo Connector JST SH
1.00mm connector
• (2X) 470uF 35V Low ESR Capacitor
• (1X) XT60 with 12AWG Silicon Cable for battery connection
