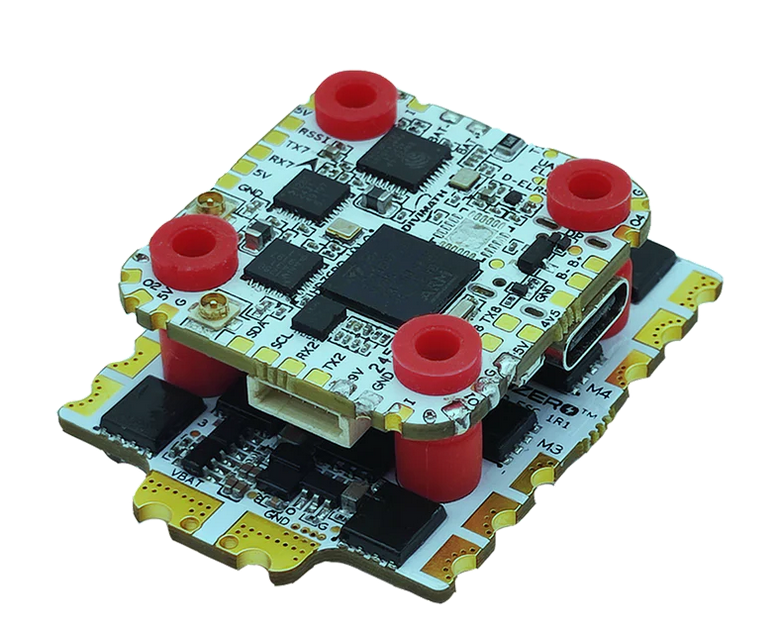

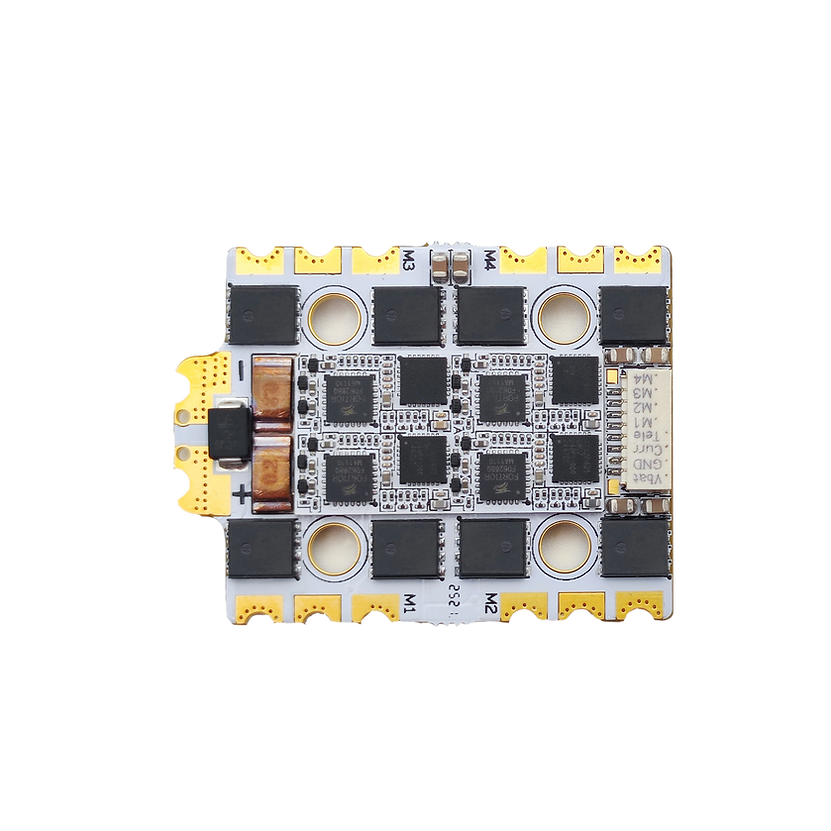

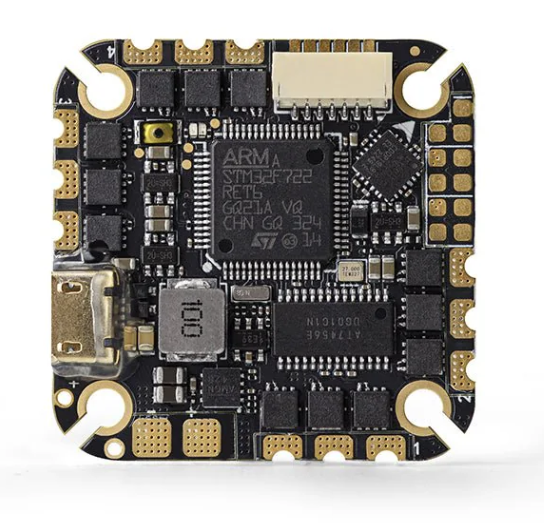

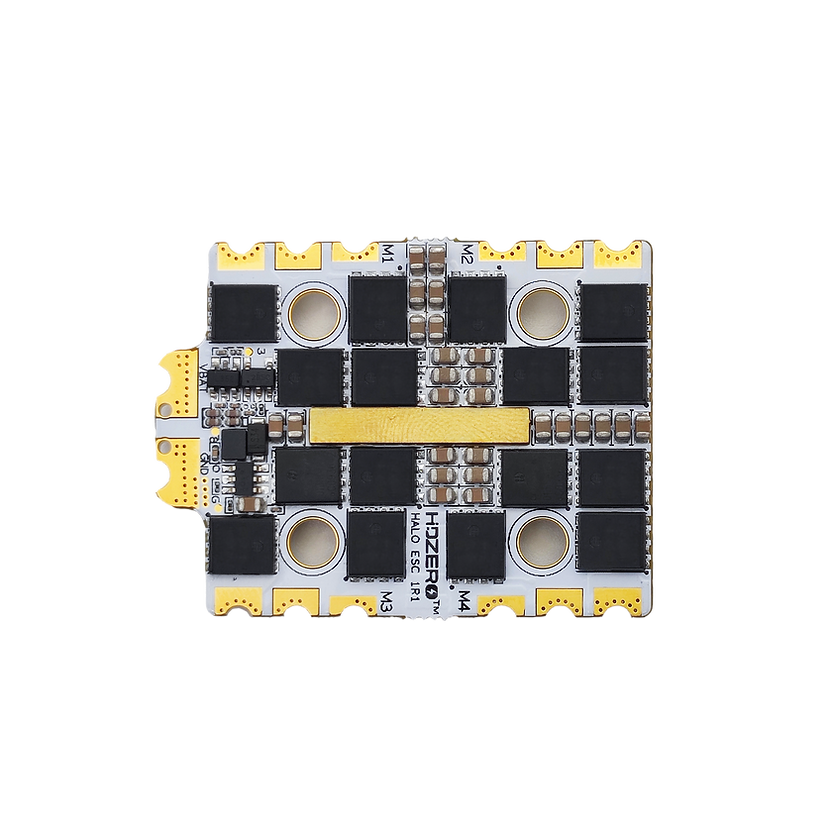

A 4-in-1 ESC, short for "Four-in-One Electronic Speed Controller," is a multi-channel motor controller commonly used in multirotor drones and quadcopters. It is designed to control the speed and direction of multiple brushless motors simultaneously, allowing for precise control and stable flight. Here's more information about 4-in-1 ESCs:
Key Features and Functions:
Multiple Motor Control: The primary function of a 4-in-1 ESC is to control the speed and direction of multiple brushless motors. It can typically handle four motor channels, making it ideal for quadcopters and other multirotor aircraft.
Integration: A 4-in-1 ESC integrates four individual electronic speed controllers into a single compact unit. This integration reduces the clutter of wiring and simplifies the installation process in drone builds.
Synchronization: 4-in-1 ESCs synchronize the motor signals to ensure smooth and coordinated motor operation. This synchronization is essential for stable flight and precise control, especially in the case of quadcopters.
Input Signals: 4-in-1 ESCs typically accept input signals from flight controllers, such as PWM (Pulse Width Modulation) signals or digital protocols like DSHOT, Oneshot, or Multishot. These signals come from the flight controller to adjust motor speeds and, consequently, the drone's attitude and movement.
Built-in BEC: Many 4-in-1 ESCs include a built-in Battery Eliminator Circuit (BEC) to provide a regulated voltage output for powering the flight controller, receiver, and other onboard electronics. This eliminates the need for a separate BEC in the drone build.
Current and Temperature Monitoring: Some 4-in-1 ESCs feature current and temperature monitoring capabilities. These sensors help monitor the health and performance of the ESCs and can provide real-time data to the flight controller.
Space Savings: A 4-in-1 ESC significantly reduces the space required for motor controllers in the drone's frame, leaving more room for other components like the flight controller, battery, and camera equipment.
Simplified Wiring: With four ESCs integrated into one unit, the wiring harness becomes more straightforward, reducing the likelihood of wiring errors and improving overall build cleanliness.
Reduced Weight: The consolidation of four ESCs into a single unit can result in weight savings compared to using individual ESCs.
4-in-1 ESCs are primarily used in multirotor drones, particularly quadcopters and some hexacopters, where precise control of four or more motors is required for stable flight and agility. They are suitable for various drone applications, including aerial photography, FPV racing, freestyle flying, and aerial inspections.
When choosing a 4-in-1 ESC for a drone build, factors to consider include the voltage and current rating (to match the battery and motor requirements), compatibility with the flight controller and receiver, and support for your preferred communication protocol (PWM, DSHOT, etc.). Additionally, make sure to follow the manufacturer's recommendations for setup, calibration, and firmware updates to ensure reliable and safe operation.
