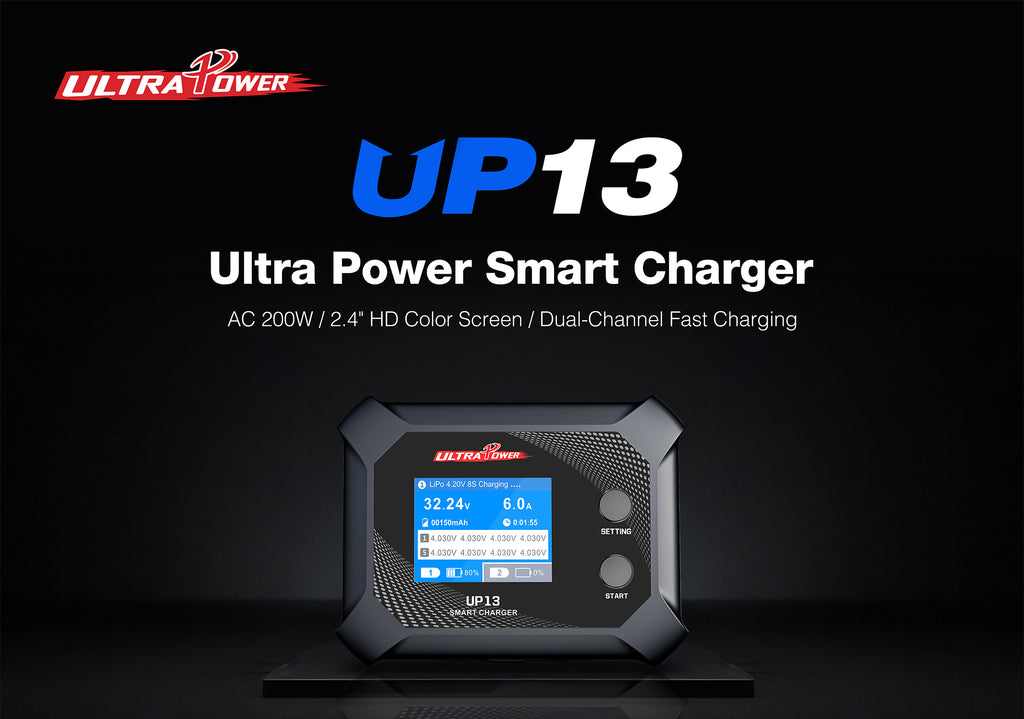

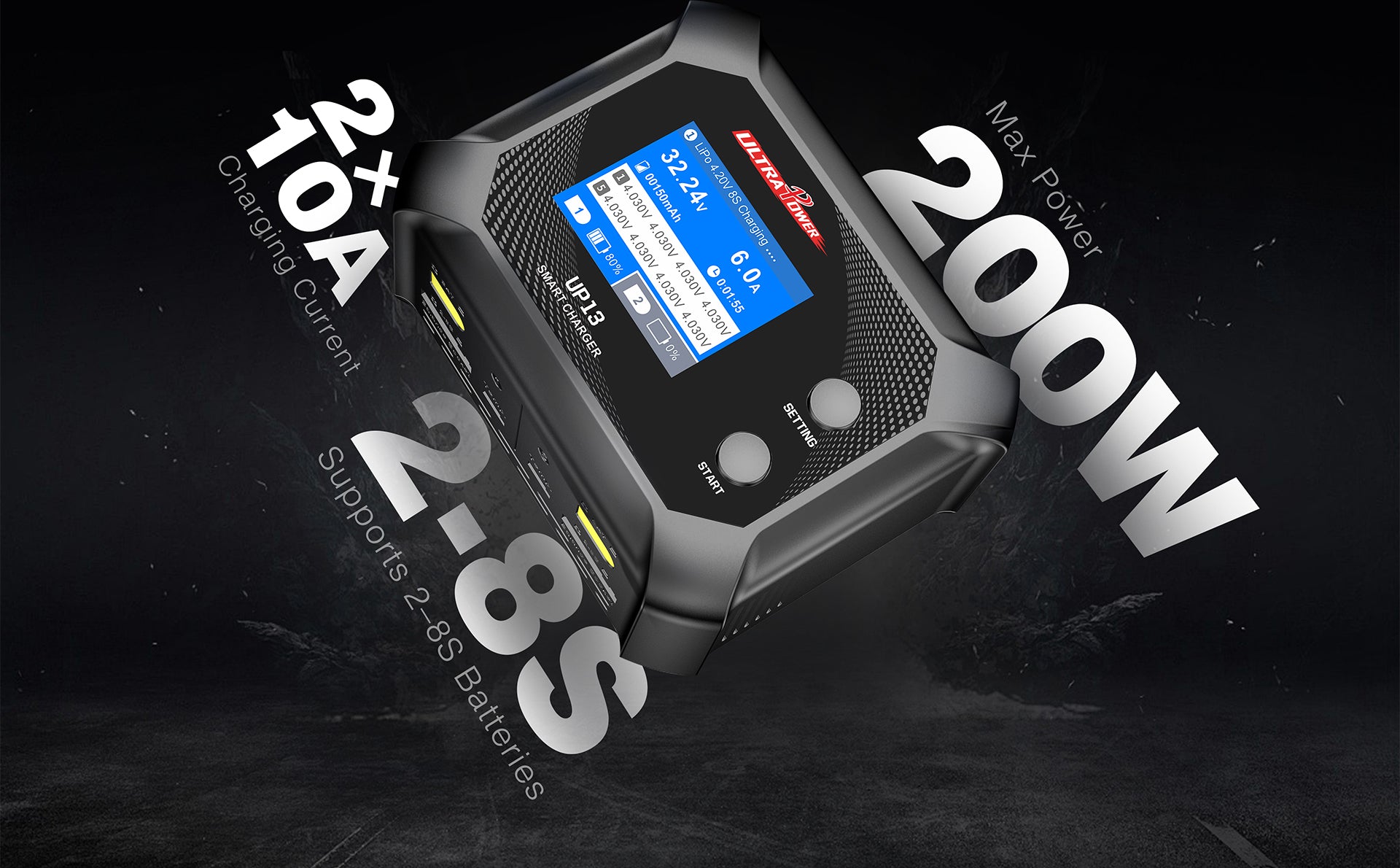

The Ultra Power UP13 is a versatile, dual-channel AC smart charger designed for quadcopter pilots, drone racers, RC hobbyists, and enthusiasts. Its full-color 2.4″ IPS screen shows real-time data, and the charger intelligently distributes a combined 200 W load between two batteries for efficient parallel charging.
-
Dual-Port Independent Control: Manage two packs simultaneously with up to 10 A per channel.
-
Wide Chemistry Support: Handle 2–8S LiPo, LiFe, Li-ion, and high-voltage LiHV packs (up to 4.50 V/cell).
-
High‑Precision Balancing: 500 mA cell balance ensures accurate, safe charging (±0.005 V precision).
-
Smart Firmware: Enable USB firmware updates for added features and future support.
-
Compact & Portable: Slim plastic design at 135×105×68 mm, weighing around 580 g.
-

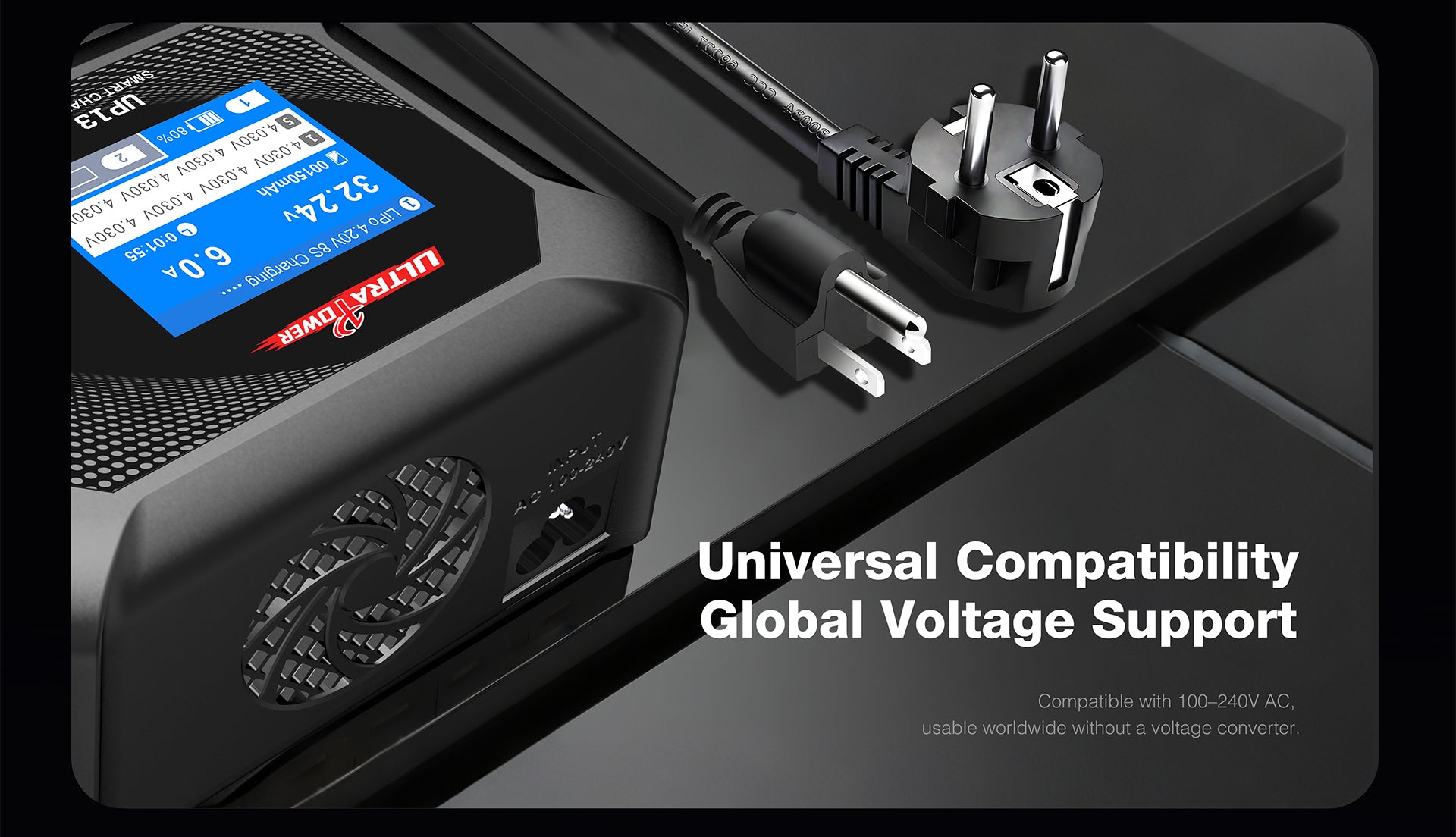

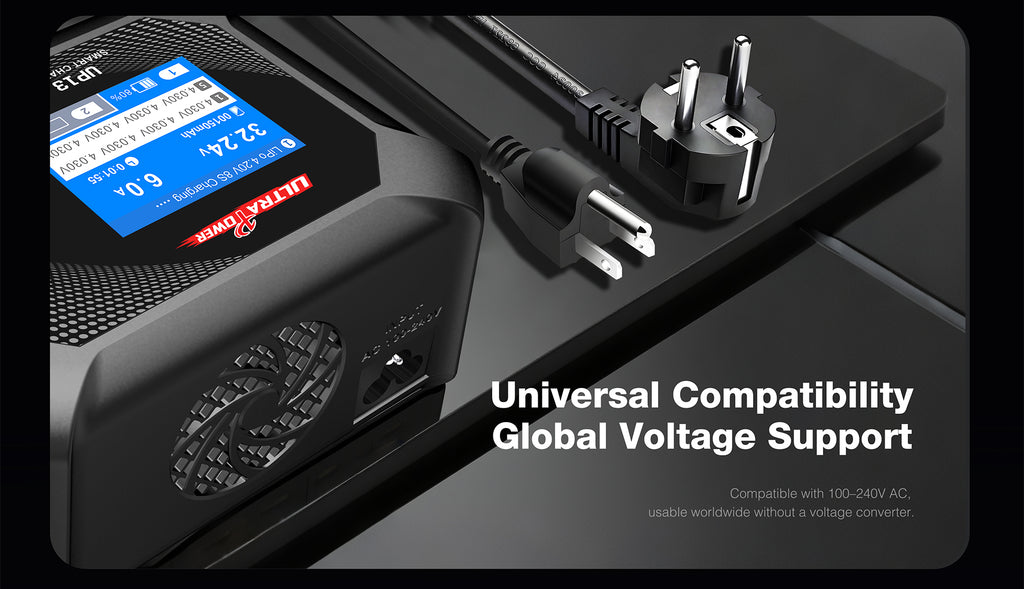

All‑Range AC Input: Accepts 100–240 V worldwide power supplies.

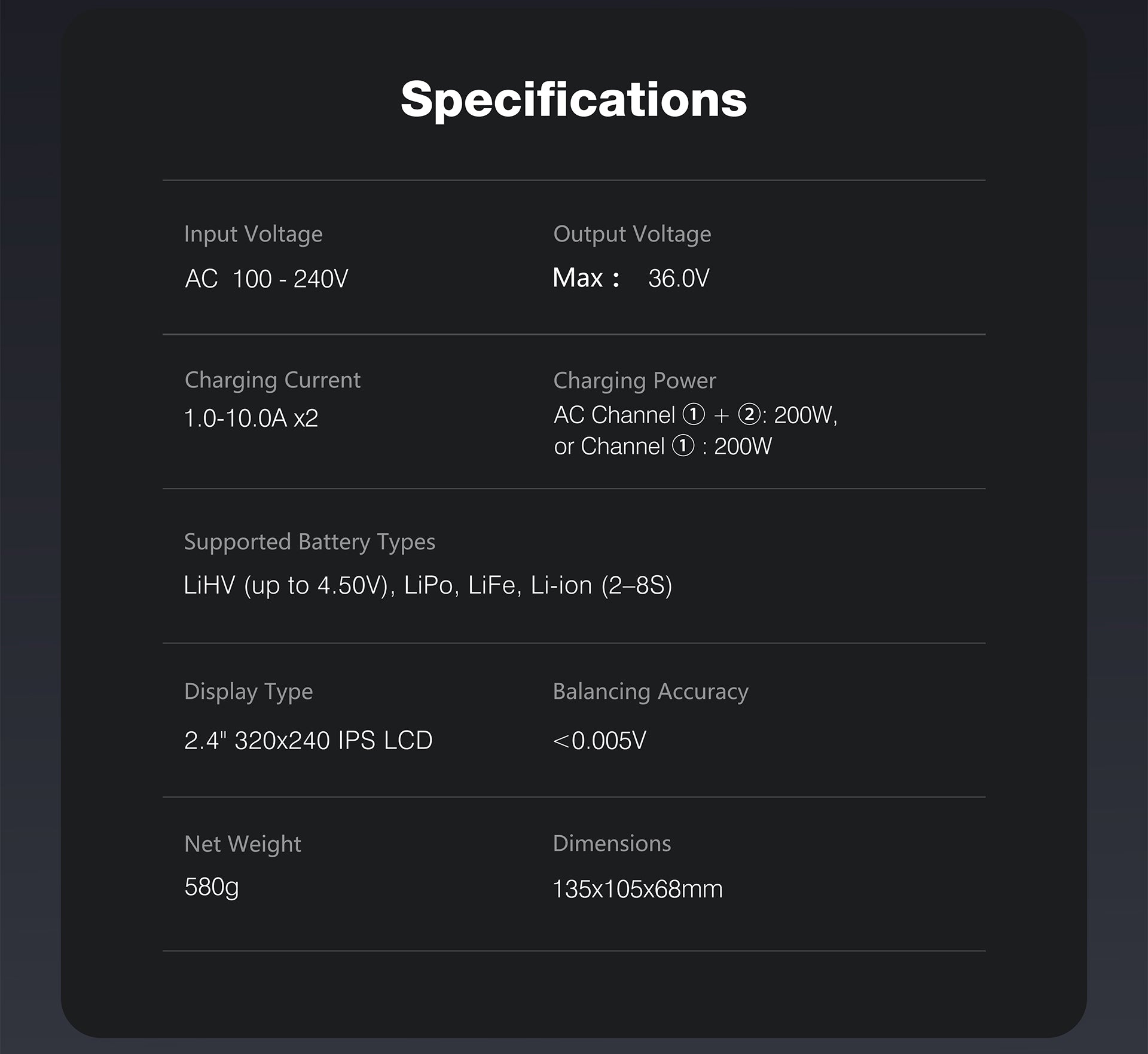

📋 Specifications
| Category |
Details |
| Model |
UP13 Smart AC Charger |
| Power Input |
AC 100–240 V
|
| Charge Power |
Max. 200 W total; power distribution across 2 channels (100 W each or bias)
|
| Charge Current |
0.1–10 A per channel
|
| Output Voltage |
Up to 36 V (max 26.7–36 V supported—2–8 S Li battery range)
|
| Balance Current |
Max 500 mA per cell; precision < 0.005 V |
| Battery Compatibility |
LiPo / LiFe / Li-ion / LiHV (supports up to 4.50 V/cell), 2–8S packs
|
| Display |
2.4″ IPS color LCD, 320×240 resolution
|
| Firmware |
Upgradeable via USB—ensures future compatibility
|
| Dimensions |
135 × 105 × 68 mm
|
| Weight |
~580 g
|
| Housing |
Durable plastic casing |
