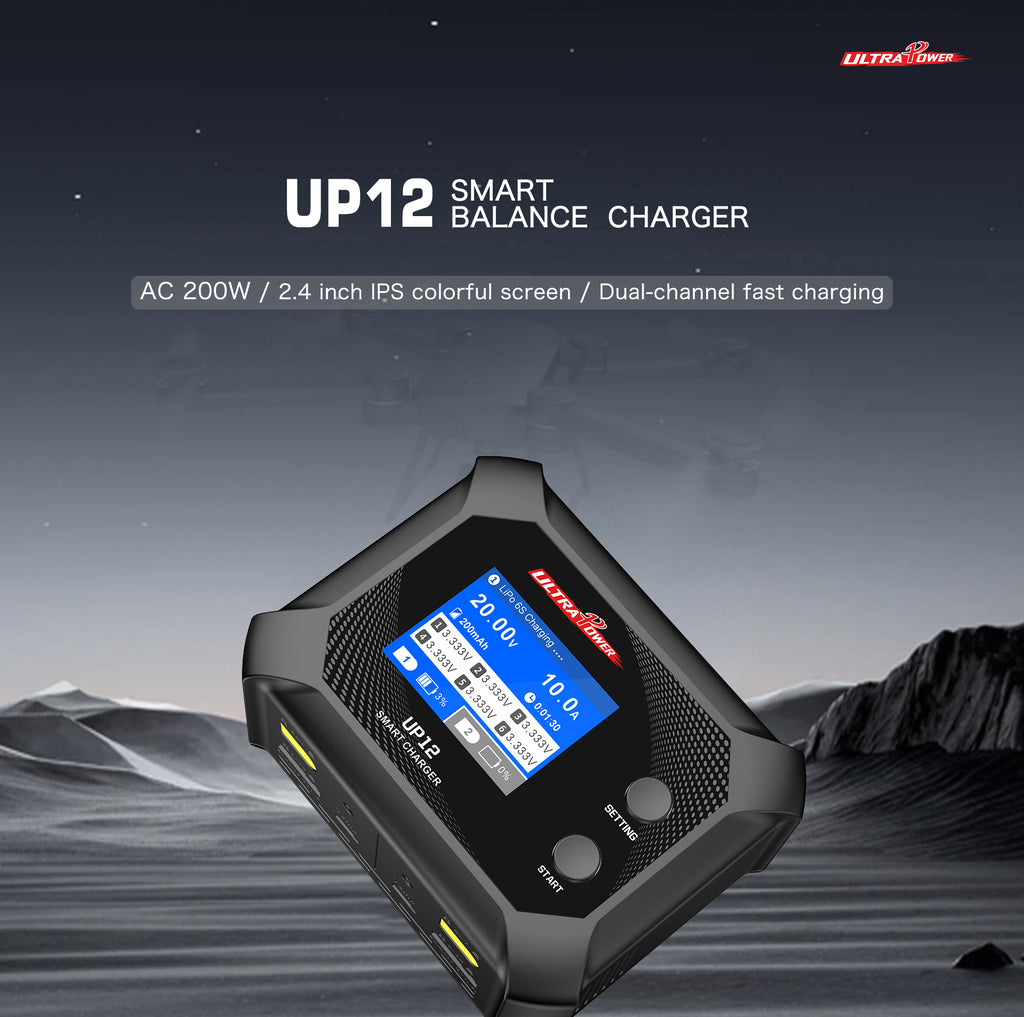

The Ultra Power UP12 is a two-channel, smart AC balance charger delivering a combined 200 W and up to 10 A of charging power. Perfectly suited for mid-sized UAVs, drones, and RC models, it supports a wide range of battery chemistries including LiPo, LiFe, Li-ion, NiMH/NiCd, and lead-acid batteries.
Each channel allows independent control of charge/discharge current and voltage settings, with built-in cell balancing and delta-peak detection for safe, efficient charging. The LCD screen and dial/button interface make it easy to navigate menus, select charge profiles, and check battery statuses. Plus, the charger includes USB output for controller/firmware upgrades and device charging.
Safety is built in—from over-voltage, over-temperature, and reverse-polarity protection to precise discharge control. Firmware updates via USB ensure that compatibility and features can grow with your needs.

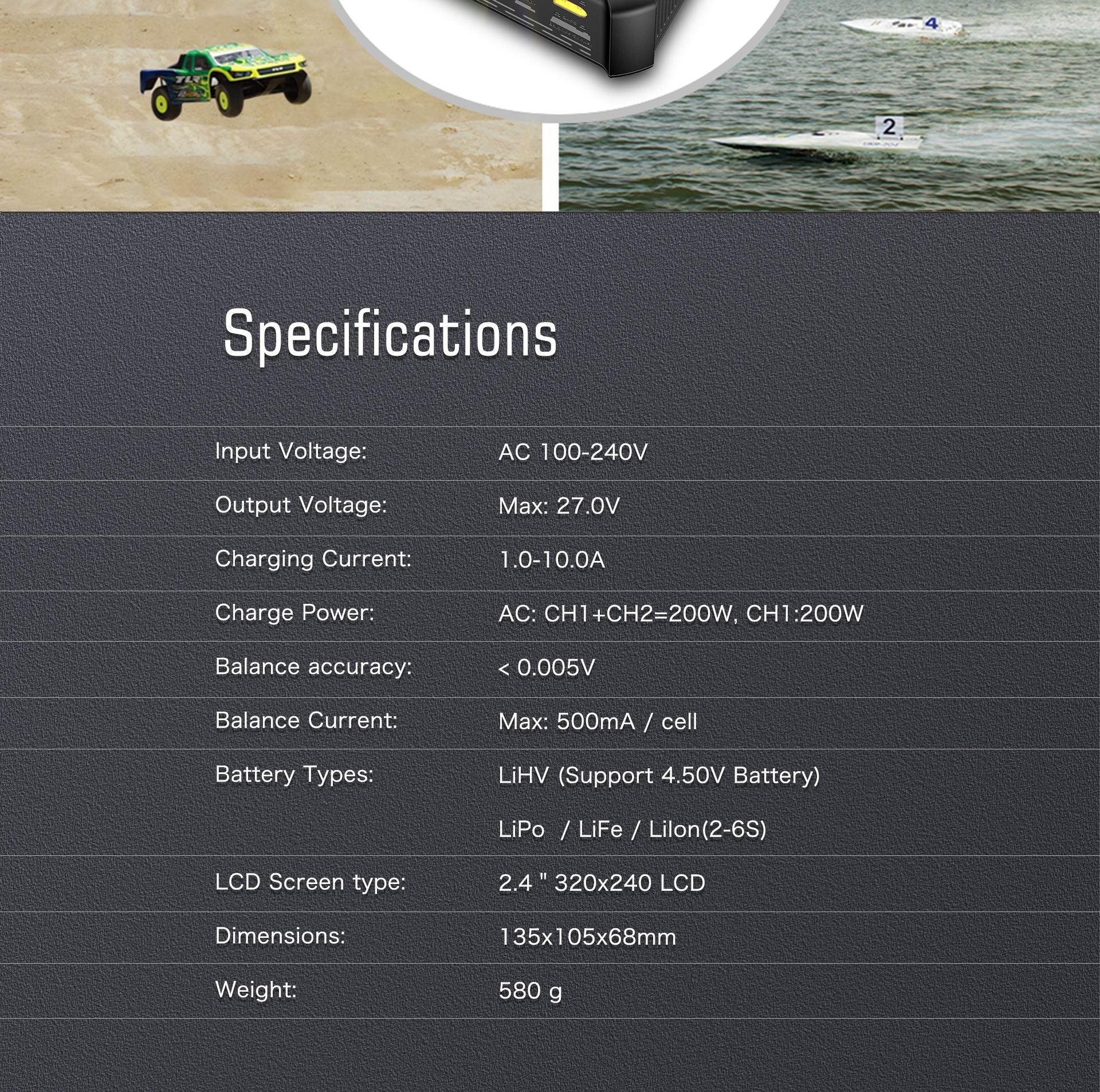

📋 Specifications
| Spec Category |
Details |
| Model |
UP12 AC (Dual‑Channel) |
| Power |
200 W total (likely 2×100 W per channel) |
| Max Current |
10 A total (approx. 5 A per channel) |
| Voltage Input |
AC 100–240 V (auto-switching) |
| Balance Ports |
Dual independent channels with built-in LiPo balance |
| Battery Types |
LiPo, LiFe, Li-ion, NiMH/NiCd, Pb |
| Cell Count Support |
Li‑ion types: 1–6 S; NiMH/NiCd: 1–15 cells; Pb: 2–20 V |
| Features |
– Individual charge/discharge settings per channel<br>– Data storage (up to X profiles)<br>– Delta-peak detection for NiMH<br>– Cell‑by‑cell balancing<br>– Safety protections: over-temperature, over-voltage, reverse polarity |
| Interface |

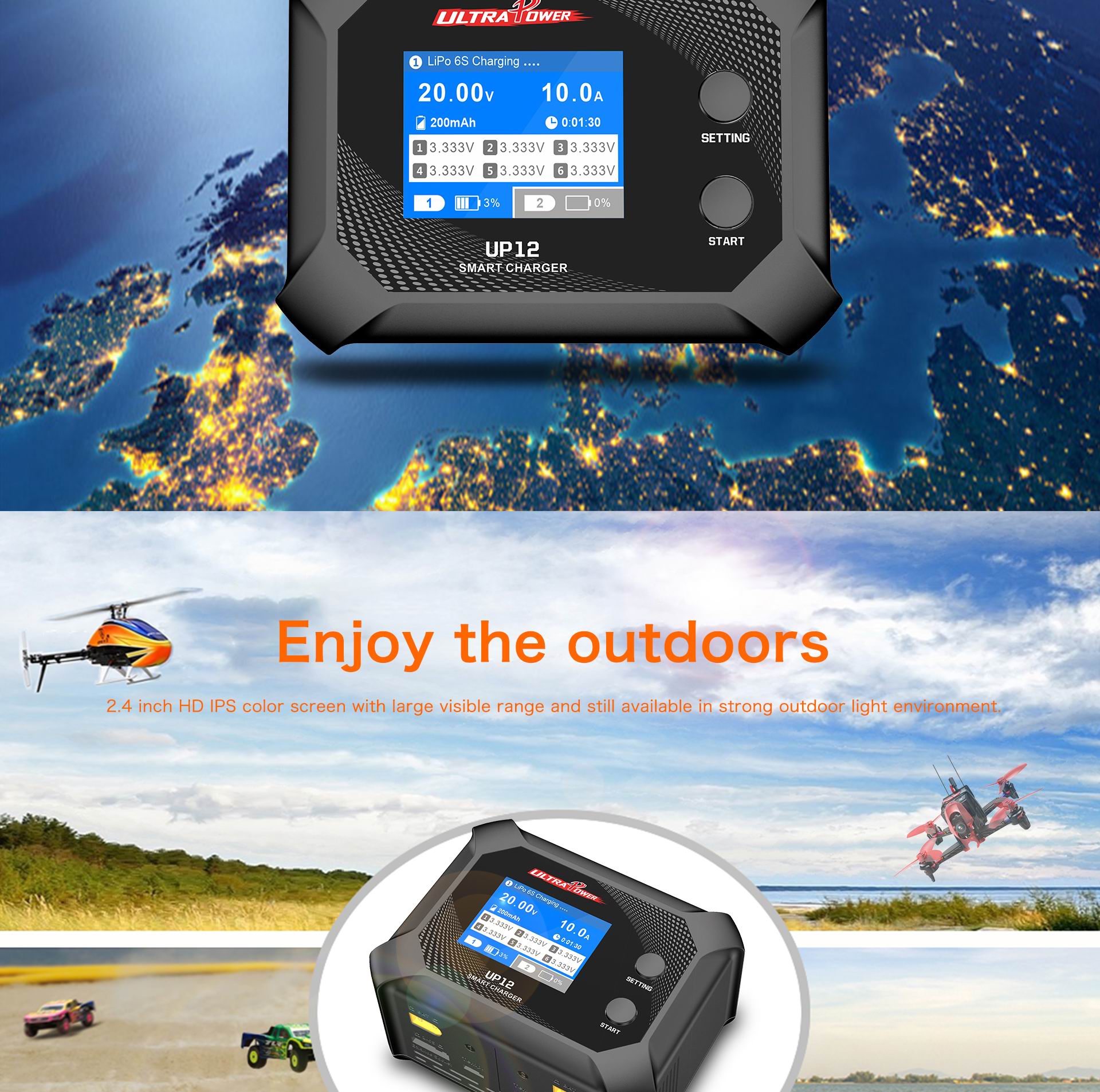

LCD screen, encoder dial/button control |
| USB Port |
Likely one auxiliary USB output (5 V/2.1 A) |
| Firmware |
Upgradeable via mini‑USB |
| Dimensions |
~180×140×60 mm (based on similar models)
|
| Weight |
~1.2 kg |
