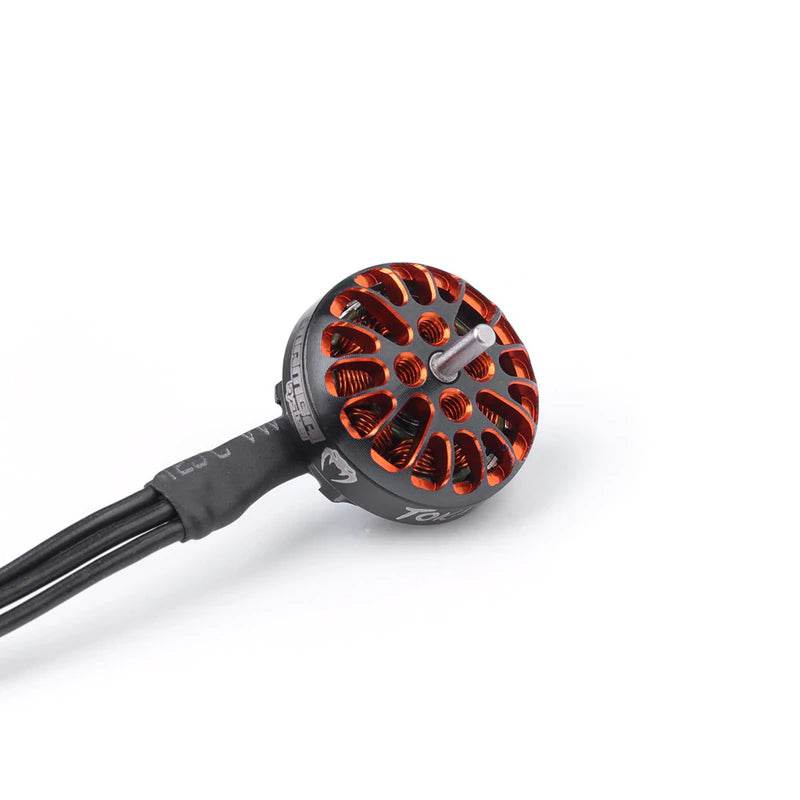

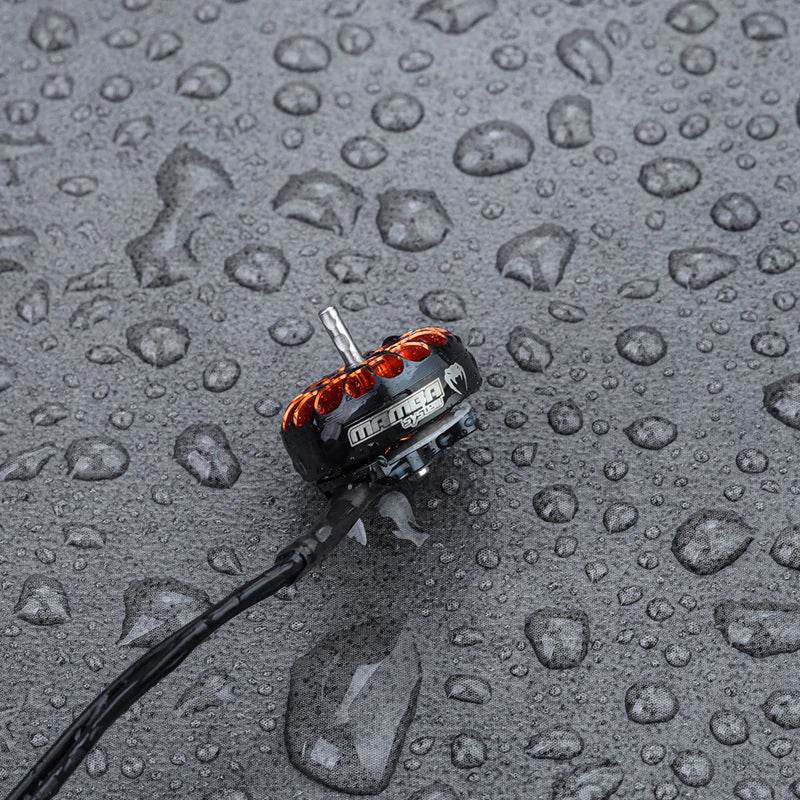

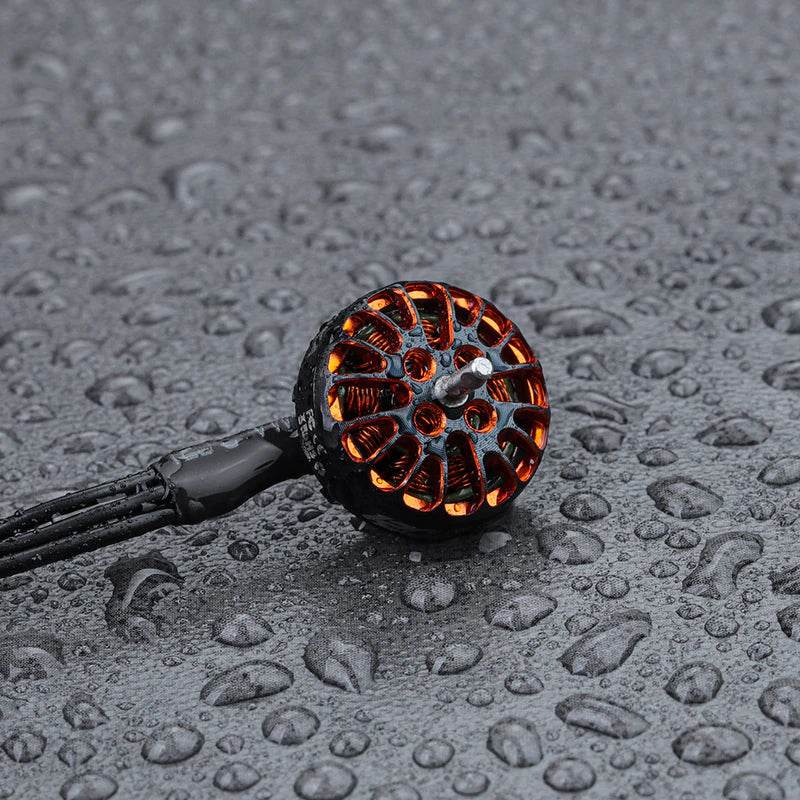

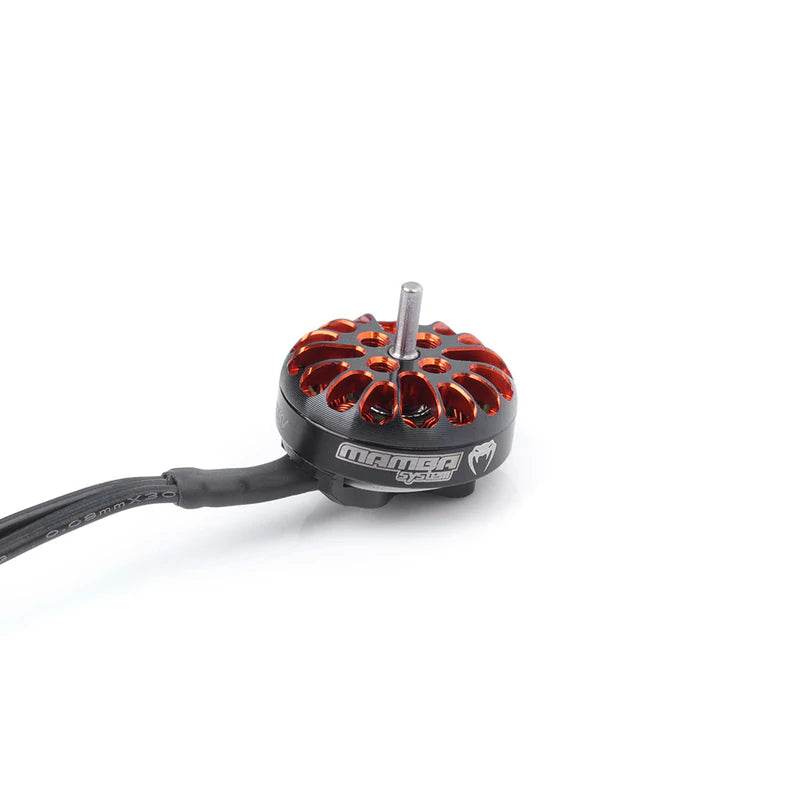

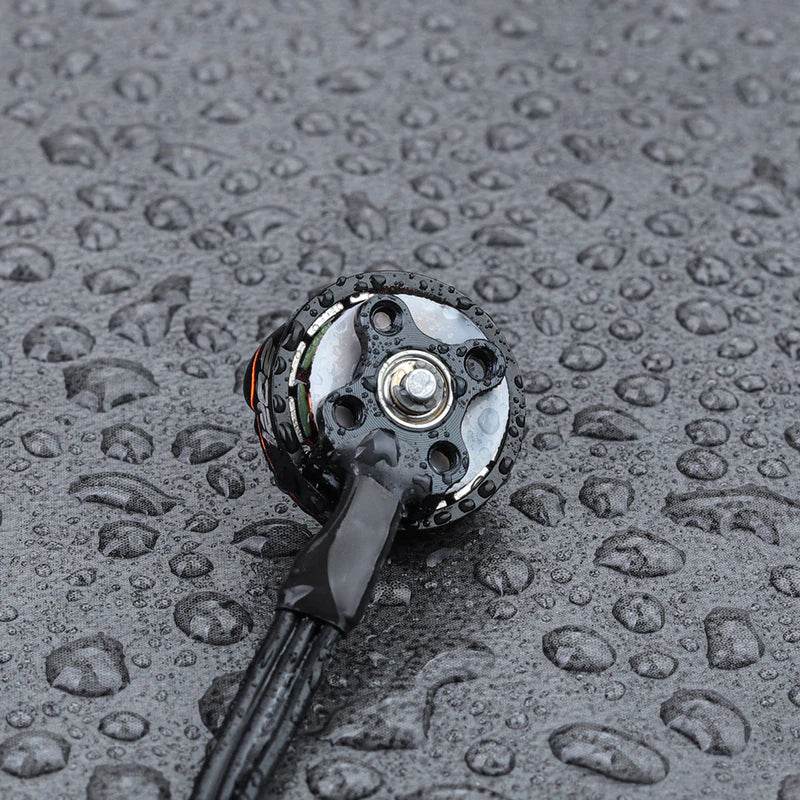

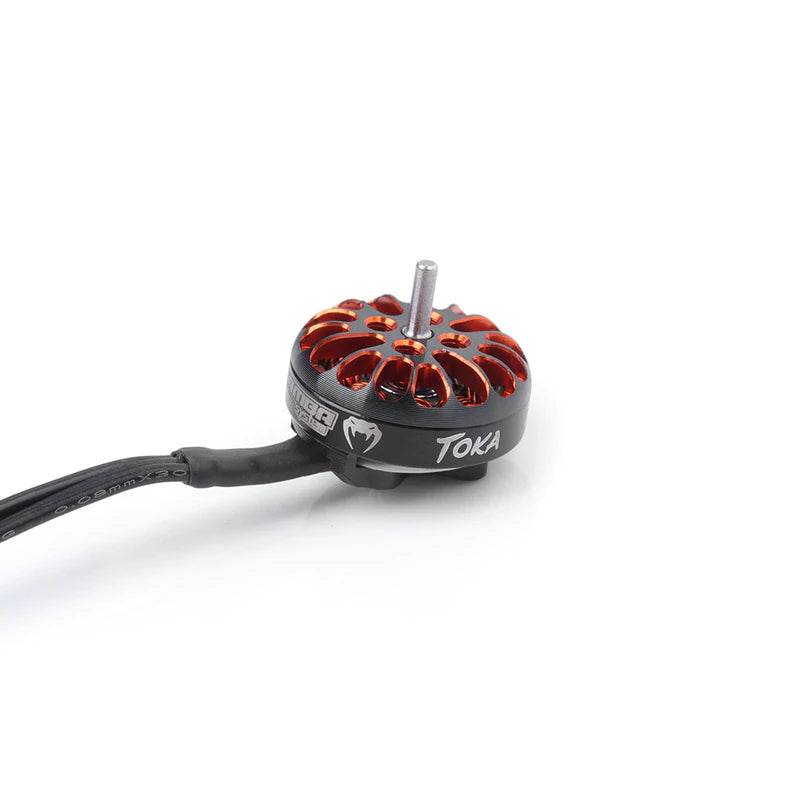

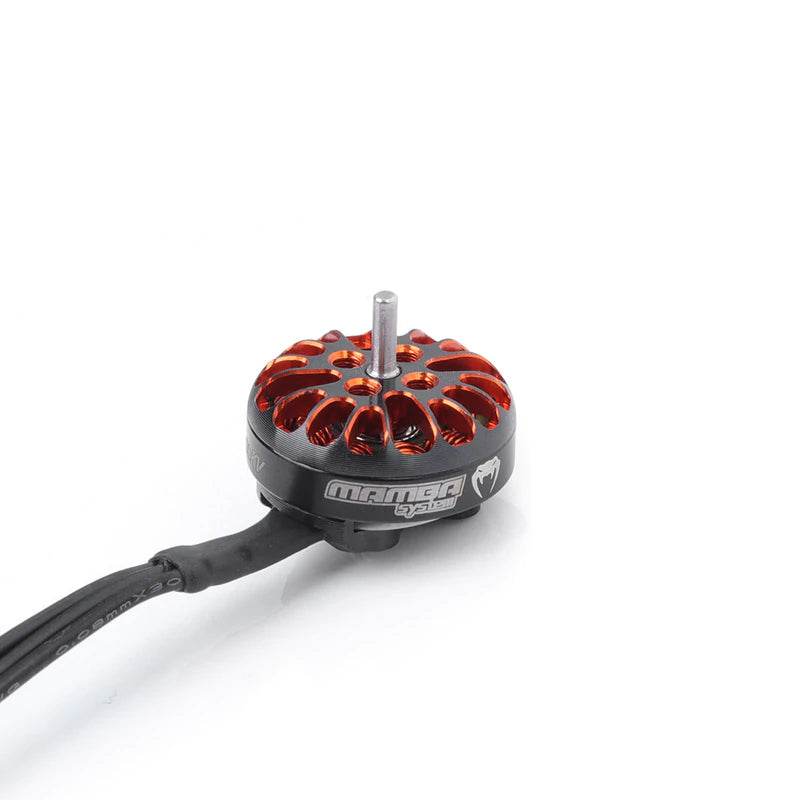

TOKA 1202 6500KV/8500KV/10000KV Racing motor

  • Sale


  • Regular price $19.99

Tax included. Shipping calculated at checkout.
Order in 0H, 44M, 42 Seconds (before 3pm AEST) for same day despatch.


Description

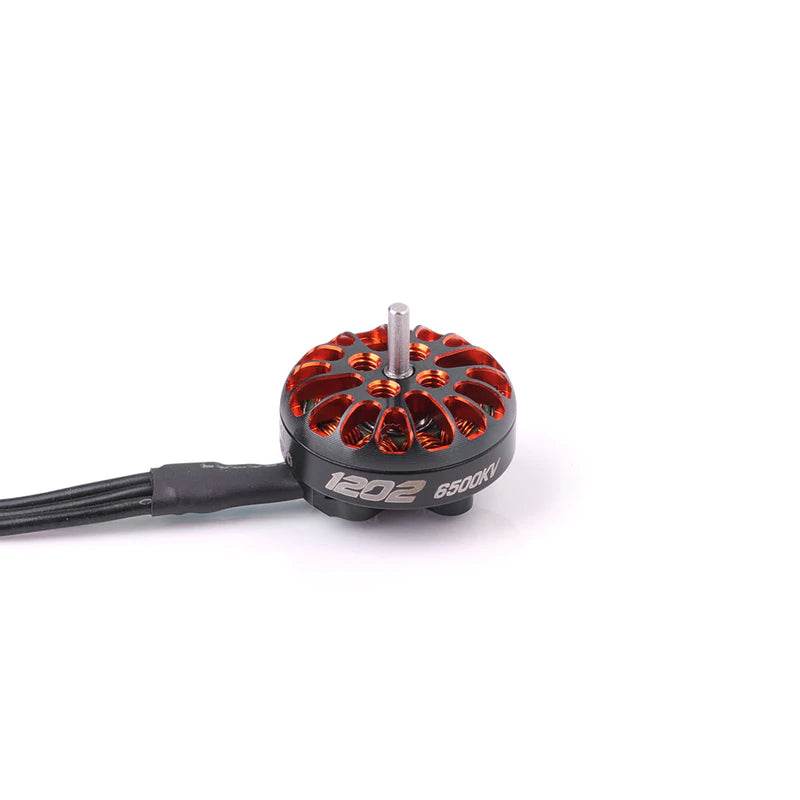

1202 6500kv Racing Motor

MOTOR TABLE

Overall Dimension:Φ16×9mm
prop mounting shaft diameter:1.5mm

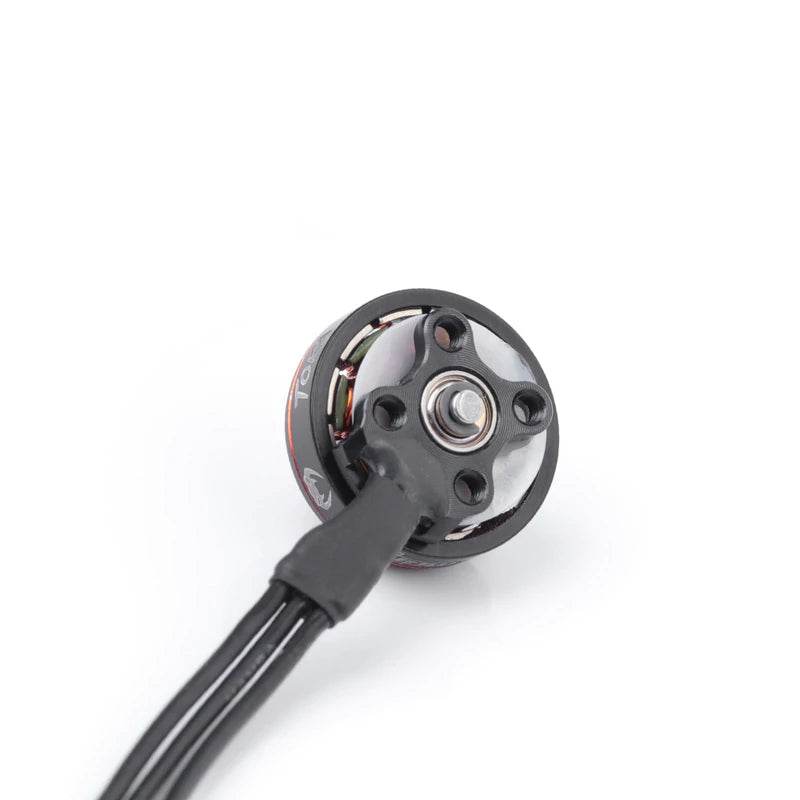

Installation hole position:9×9mmM2
Prop: 1.6inch~2.5inch
Bearing:5*2*1.5
Shaft Diameter:2.0mm
Lead Wire Size24AWG×100mm
slots/poles:9N12P
Magnet Wire: 240 Enameled Wire
Stator Diamter12mm
Stator Height:2mm
Rated Voltage:2~3S (8.4V~12.6V)
Peak Current: 7.3A
ladle Current:5V/0.36A
Maximum Power: 88W
Internal Resistance:382mΩ

1202 8500KV Racing Motor

Overall Dimension:Φ16×9mm
prop mounting shaft diameter:1.5mm
Installation hole position:9×9mmM2

Prop: 1.6inch~2.5inch
Bearing:5*2*1.5
Shaft Diameter:2.0mm
Lead Wire Size24AWG×100mm
slots/poles:9N12P
Magnet Wire: 240 Enameled Wire
Stator Diamter12mm
Stator Height:2mm
Rated Voltage:2S(8.4V)
Peak Current: 5.9A
ldle Current:4V/0.48A
Maximum Power: 50W
Internal Resistance:226mΩ

1202  10000KV Racing Motor

Overall Dimension:Φ16×9mm
prop mounting shaft diameter:1.5mm
Installation hole position:9×9mmM2
Prop: 1.6inch~2.5inch
Bearing:5*2*1.5
Shaft Diameter:2.0mm
Lead Wire Size24AWG×100mm
slots/poles:9N12P
Magnet Wire: 240 Enameled Wire
Stator Diamter12mm
Stator Height:2mm
Rated Voltage:2S(8.4V)
Peak Current: 8.4A
ldle Current:3V/0.49A
Maximum Power: 71W
 Internal Resistance:167mΩ
