New for 2022 Season!

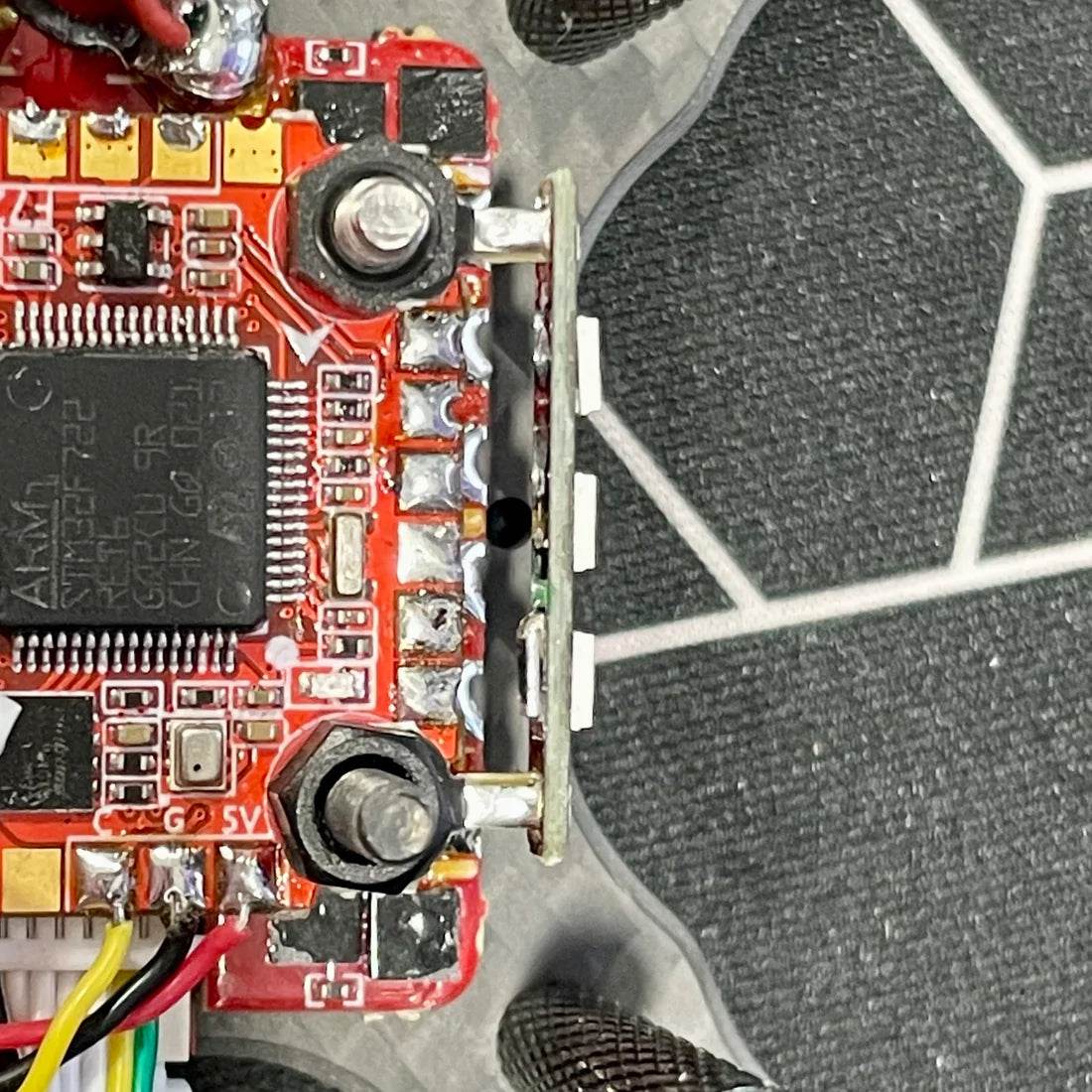

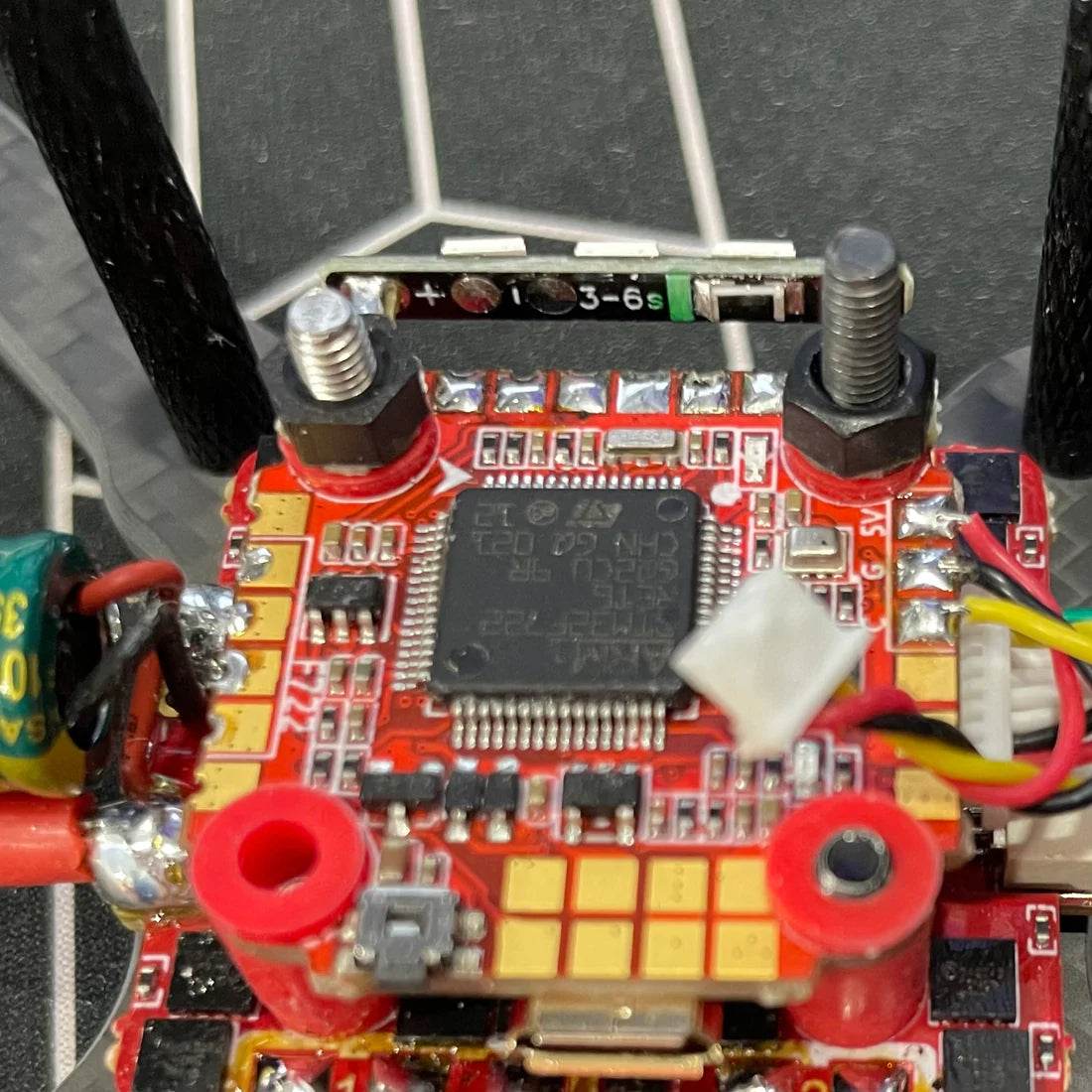

Same As the 3-6s Tiny LED's but made for mounting on 20x20 stacks. Adjustable mounting protrudes from stack to fit wiring needs
- Slide mounting tabs into mounting holes on led.
- Align evenly between both tabs.
- Apply small amount of solder to tab on both sides to affix to the led mounting boards.
- Mount on stack and wire to 3-6s power.
If you would want to 3d print a mount the dimensions of the holes are.
* 1.05mm x 2mm and 20mm on center
- Size: 25mm x 5mm
- Current: 50-100mA
- Voltage: 3-6s Capable LED
- Features: 3x 5730 LED chips
- Includes: 2x SideCar LEDs with 5x Mounting Tabs
Warning: LEDs get extremely hot, be very careful when handling your quads with LEDs installed.
