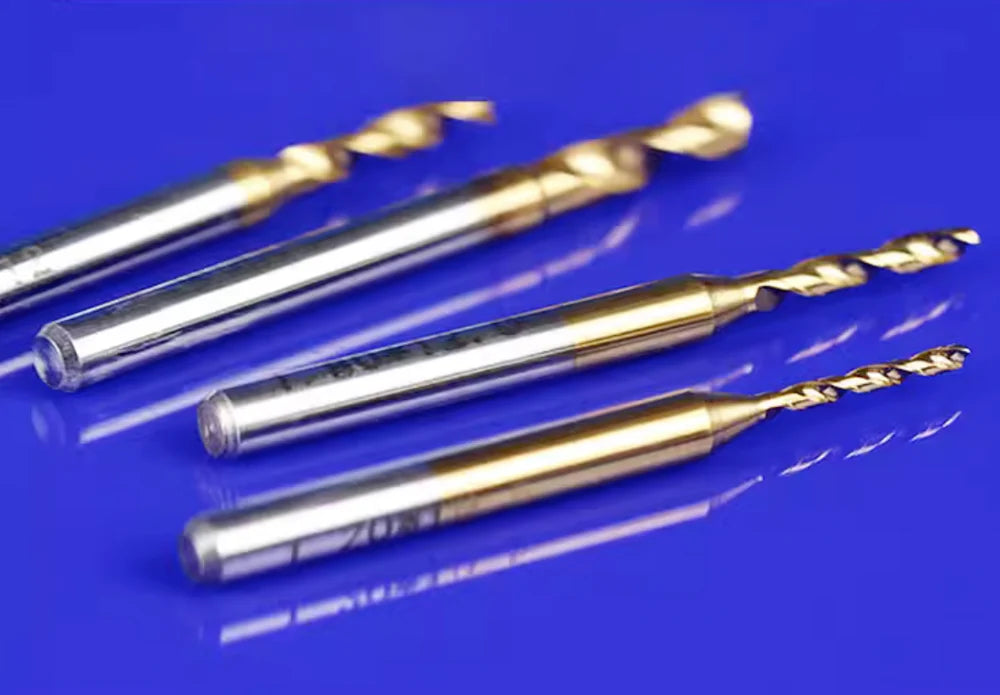

TiN Coating Drill Bit - 1/8″ Shank

Roll over image to zoom in Click on image to zoom

Order in 0H, 44M, 42 Seconds (before 3pm AEST) for same day despatch from our Townsville Store.

Specifications:
Shank Diameter: 3.175mm
Drill Diameter: 0.2mm - 3.175mm
Total Length: ~ 38mm
Material: TiN Coating Solid Carbide

Materials:
PCB, Wood, Plastics, Composite materials, Non-Ferrous Metal, etc.

Tool Reference Parameters:

* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)

Tool	Aluminum	Brass	Carbon Fiber	Copper	Hardwood	PCB	Plastic	Softwood
0.2*3.5mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:0.5	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
0.3*5.5mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:0.5	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
0.4*7mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:0.5	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
0.5*8.5mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:0.5	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
0.6*9.5mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
0.7*10mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
0.8*10mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
0.9*10mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
1*10mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
1.1*10mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
1.2*10mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
1.3*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
1.4*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
1.5*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
1.6*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
1.7*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
1.8*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
1.9*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
2*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
2.1*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
2.2*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
2.3*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
2.4*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
2.5*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
2.6*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
2.7*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
2.8*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
2.9*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
3*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
3.175*12mm Drill	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:100 DOC:0.2	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:200 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1	RPM:10000 Feed:1000 PFeed:300 DOC:1
