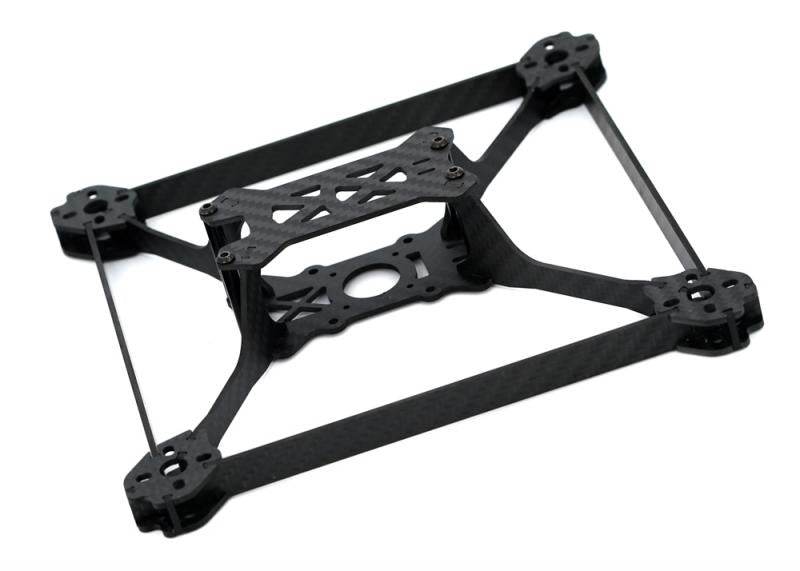

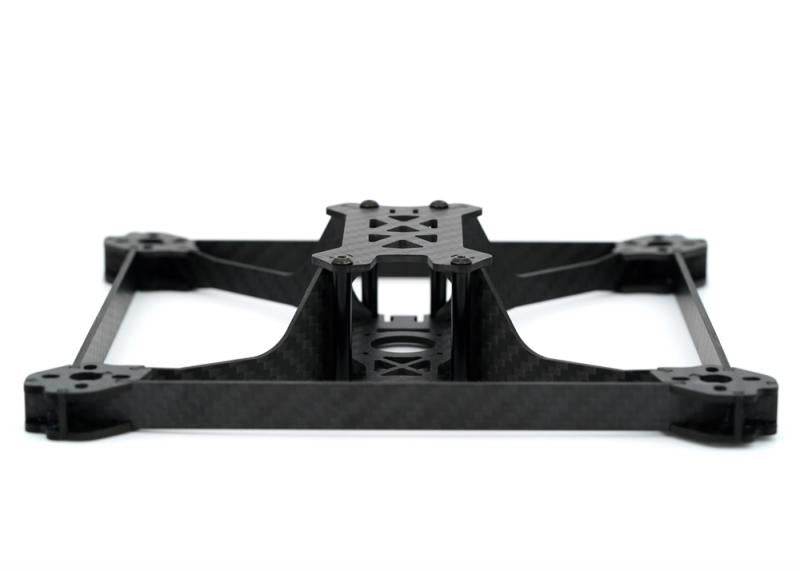

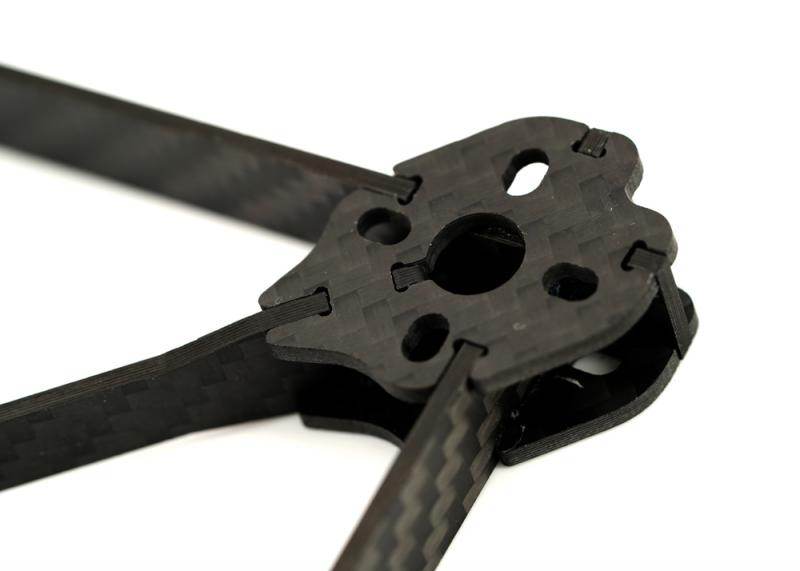

he SOURCE V is a vertical "box" style frame, popular within the racing community for its superior stifness and aerodynamics. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components. The SOURCE V is a solid competitive racing frame.

ABOUT THE PROJECT

The SOURCE V project is a collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.

GET INVOLVED!

• Project discussion: https://discordapp.com/invite/ZJGkHwF
• Project files: https://github.com/ps915/source_v
• Interactive Manual (work in progress)
• 3D Printed files on Thingiverse: https://www.thingiverse.com/tag:sourcev

PACKAGE CONTAINS:

• 1x Frame (Top, Bottom. Brace and 2x Camera plate, 4x Arms)
• 1x Screw & Standoff set

TECHNICAL SPECIFICATIONS:

• Wheelbase 5": 220mm
• Top Plate: 2mm
• Bottom Plate: 2mm
• Standoff height: M3x30mm
• Arm thickness 5": 2x12mm
• Stack Mounting: 30.5 × 30.5mm & 20 x 20
• Weight 5": 63g

HARDWARE:

• 1 x Carbon Plates Set
• 4 x Standoffs
• 1 x Screws Set
• 1 x TBS Camera Mount Set
