Talon 5.8G 4W VTX

Talon 5.8G High-Power VTX 4W Options
Robust Long-Range Video Transmission with Two-Channel Switching

The Talon 5.8G VTX is a high-performance video transmitter designed for long-range FPV and professional UAV operations. With selectable power outputs up to 4W and precision-engineered heat and signal management, this unit provides stable, low-latency video feeds in challenging environments. The 2.5W version offers a reliable balance between power efficiency and extended transmission range.

Key Specifications – 5.8G 2.5W Variant:

• Input Voltage: DC 7–36V (2S–8S LiPo compatible)

• 12V Input Current: 145mA@Pit-mode, 280mA@25mW, 950mA@4000mW)

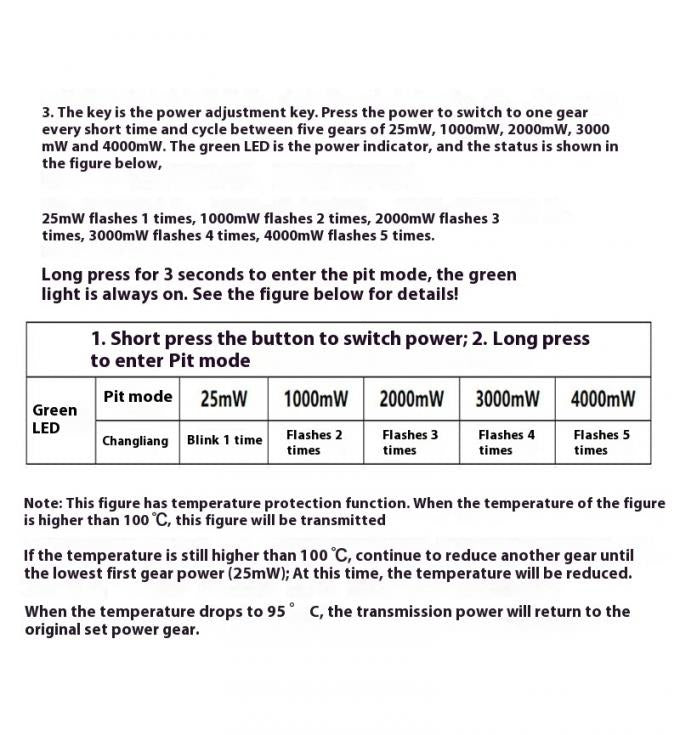

• Power: PIT/25/4000mW

• Temperature Range: -10°C to +60°C

• Video Input Impedance: 75Ω (standard for FPV cameras)

• Physical Dimensions: 37.7*36.1*11mm; 30.5*30.5mm(hole)

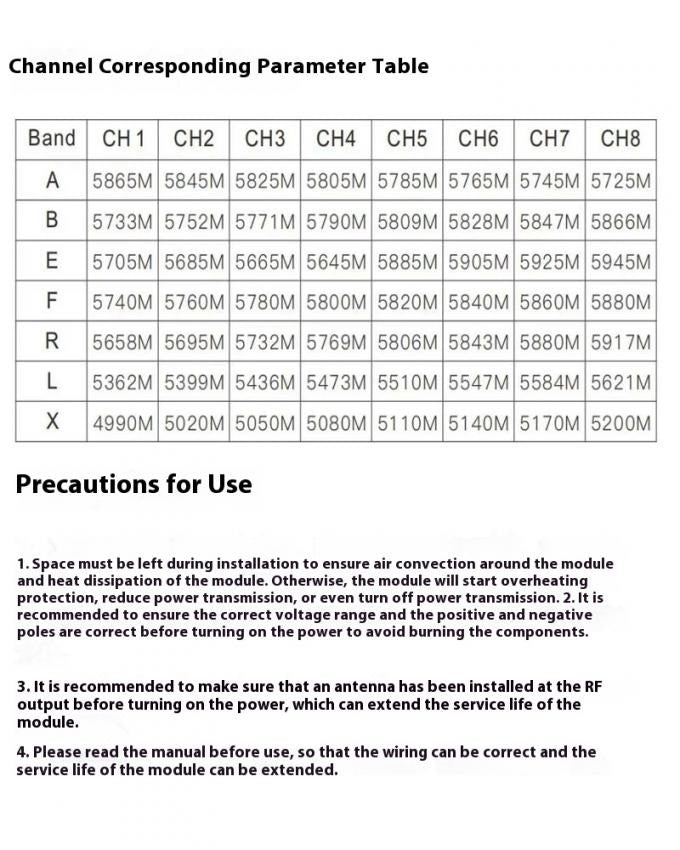

• Channel Support: 48CH(A.B.E.F.R.L; 5362MHz-5945MHz

Product Features:

• High-Power Output
  Supports adjustable output levels up to 4W, providing extended range and superior penetration in dense environments.

• Wide Voltage Compatibility
  Accepts a broad range of input voltages (2S to 8S), allowing integration into a variety of FPV platforms without the need for additional regulation.

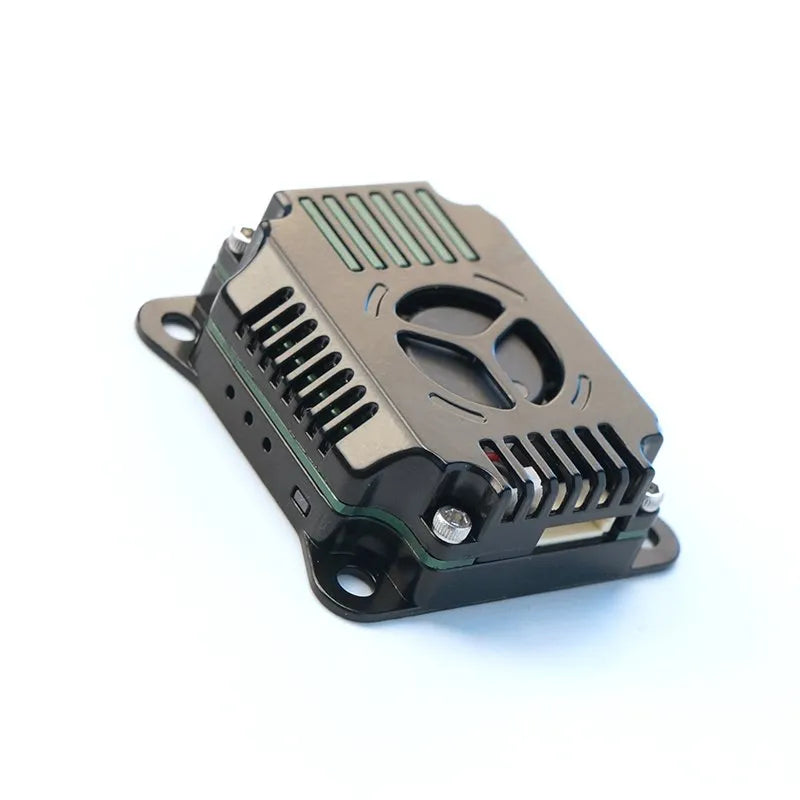

• Compact & Durable Form Factor
  Precision-milled casing in a compact profile ensures easy installation even in space-constrained airframes.

• Thermal Regulation
  Efficient thermal design ensures stable performance under continuous load, reducing risk of signal degradation during prolonged flights.

Applications:
Suited for long-range FPV systems, fixed-wing UAVs, tactical surveillance drones, and any platform requiring strong video signal performance over extended distances.

Please note the photos aren't an exact representation of the VTX or Power.
