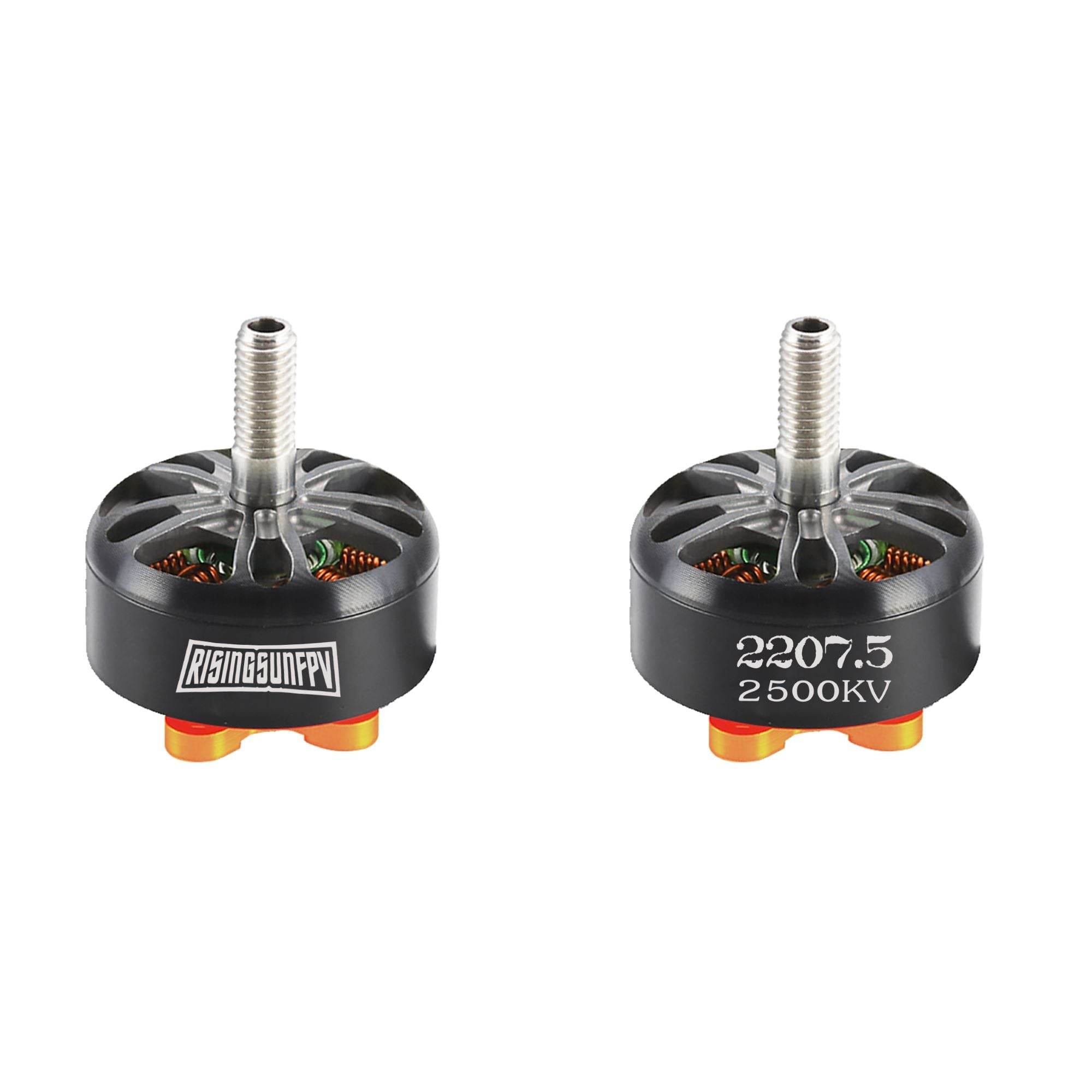

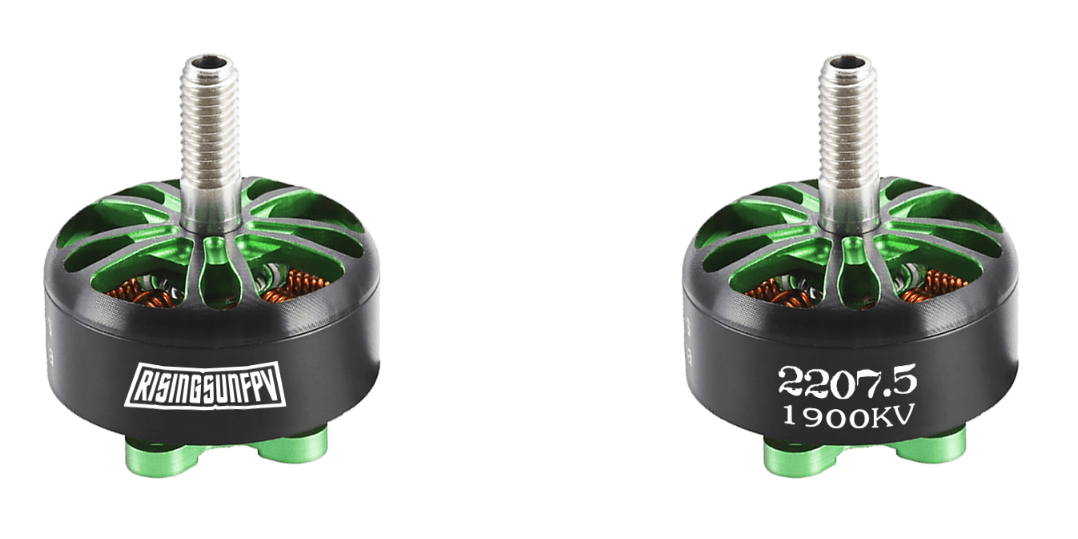

Item Name: Rising Sun FPV - Helios Motor 2207.5 1900kv 6s/2500kv 4s
KV: 1900KV /2500KV
Version: CW Screw Thread
Quantity: 1 PC
Input Voltage: 3-6S @ 1900KV ;
2-4S @ 2500KV
Stator Diameter: 22mm
Stator Length: 7.5mm
Shaft Diameter: 5mm
Cable Length: 150mm, 20AWG
Motor Dimension: 27.5x18.5mm (Dia*Len)
Weight: 36.3g ( include cable)
Idle Current: 1.1A (1900KV); 1.3A(2500KV)
Max. Con. Power: 1069.2W@1900KV; 677.2W@2500KV
Internal Resistance: 63.2mΩ@1900KV; 40.3mΩ@2500KV
Peak Current (60S): 45.38A@1900KV; 43.55A@2500KV
Max. Pull: 1959g@1900KV; 1590g@2500KV
Motor Mounting: M3 - 16mm
