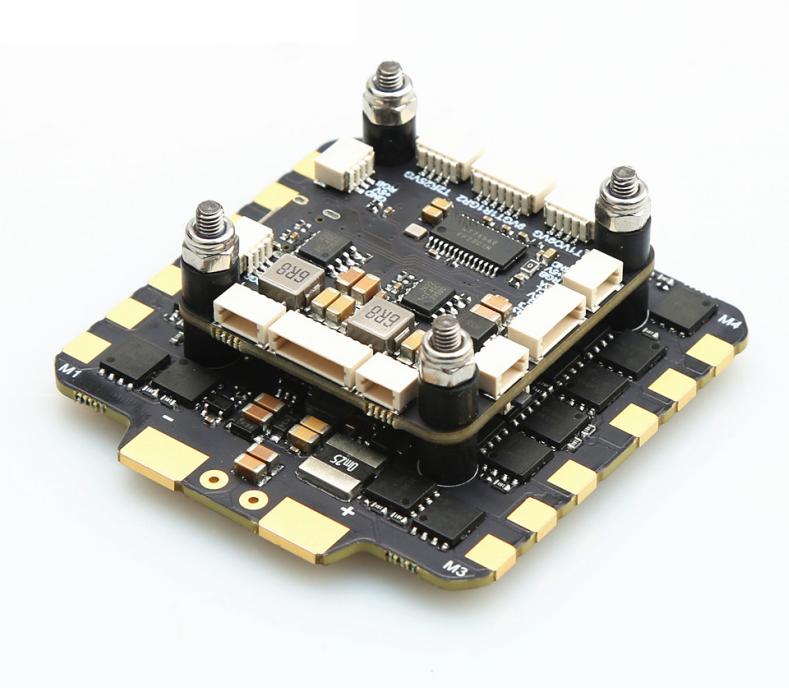

Hydra F722 + 80A Stack (TEARCKEP Edition)
F7 Flight Controller + 80A 4-in-1 ESC | 3–8S LiPo | Dual BEC | 36×36mm Mounting
The Hydra F722 + 80A Stack is a high-performance, compact flight system engineered for freestyle and racing FPV builds. Combining the powerful TEARCKEP F722 flight controller with a robust 80A 4-in-1 BLHeli_S ESC, this stack delivers responsive control, clean power distribution, and the reliability needed for aggressive flight styles and high-thrust motors.
Flight Controller (FC) – TEARCKEP F722 Features:
-
Processor: STM32F722 MCU for fast and accurate flight data processing
-
Input Voltage: 3S–8S LiPo support for both lightweight and heavy-lift configurations
-
BEC Output: Dual BEC (5V @ 3A and 10V @ 2A) to independently power VTXs, FPV cameras, GPS, and peripherals
-
Blackbox Storage: 16MB onboard flash memory for high-resolution flight logging
-
Mounting Pattern: Standard 36×36mm board (30.5×30.5mm hole spacing)
-
PCB Quality: Built using high-end composite materials for durability, thermal resistance, and reduced electrical noise
-
Design Focus: Easy maintenance layout with low interference routing for clean signal performance
4-in-1 ESC Features:
-
Continuous Current: 80A per channel (BLHeli_S firmware)
-
Voltage Input: 3S–8S LiPo
-
ESC Firmware: BLHeli_S for smooth, responsive throttle control and excellent motor handling
-
Protection Features: Includes safeguards against over-current, over-temperature, and signal loss
-
Signal Protocols: Supports DShot, PWM, and OneShot for broad compatibility
TEARCKEP F722 F7 Flight Controller FC 3-8S
Lipo 5V/10V Dual BEC w/80A 4in1 BLheli_S ESC
for RC FPV Freestyle Racing Drone Accessories
Features:
1. The F722 is a 3-8S 36x36mm mini flight
controller with a 16MB Blackbox flash memory,
5V 10V dual BEC. Designed for easy
maintenance and low interference.
2. The PCB adopts high-end composite
