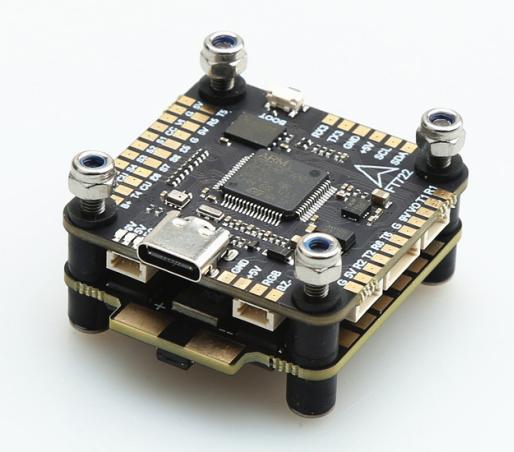

Hydra F722 + 60A Stack
High-Precision F7 Flight Controller + 60A 4-in-1 ESC | 3–8S LiPo | Dual BEC | ELRS/TBS Compatible
The Hydra F722 + 60A Stack is a precision-engineered flight control system built for serious FPV pilots and performance-focused drone builders. With advanced onboard sensors, dual BEC outputs, and broad protocol support, this stack is ideal for freestyle, racing, and cinematic drones operating on 3S to 8S power systems.
Flight Controller (Hydra F722) Specifications:
-
MCU: STM32F722RET6 – High-performance 32-bit processor for fast control loop execution
-
IMU: ICM-42688 – Low-noise, high-resolution 6-axis motion sensor for ultra-smooth flight data
-
OSD: AT7456E – Integrated On-Screen Display for real-time FPV telemetry
-
Barometer: SPL06-001 – Accurate altitude sensing for GPS and baro-assisted flight modes
-
Blackbox: 16MB onboard flash memory for detailed flight log storage
-
Input Voltage: 3S–8S LiPo (11.4V – 36V)
-
5V BEC: 5V @ 3A ±0.1V – Clean power for camera, GPS, and flight peripherals
-
10V BEC: 10V @ 3A (USER1) – Dedicated regulated power for high-demand components like digital VTXs
-
I/O Ports: USER1 and USER2 for flexible expansion
-
Receiver Compatibility: Supports ExpressLRS (CRSF), TBS Crossfire (CRSF), and other CRSF-compatible protocols
-
Mounting Pattern: 30.5×30.5mm (standard M3)
4-in-1 ESC Features:
-
Current Rating: 60A continuous current (per motor)
-
Firmware: BLHeli_S – Proven stability and reliable throttle response
-
Voltage Input: 3–8S LiPo
-
Protection: Includes over-current, thermal, and signal-loss protection for safe operation
-
Signal Support: DShot, OneShot, PWM
Key Benefits:
-
Designed for low electrical noise and high reliability
-
Ideal for high-thrust 5” and 6” quad builds
-
Excellent for long-range, freestyle, and racing configurations
-
Easy integration with ELRS, Crossfire, and Betaflight-supported devices
(Model): F722 Flight Controller
(MCU) STM32F722RET6
(IMU) ICM-42688
(OSD): AT7456E
(Baro) SPL06-001
(Blackbox): 16MB
(Input voltage): 3-8S Lipo(11.4-36V)
5V-BEC: 5V/3A ±0.1V
10V-BEC: 10V/3A(USER1)
IO2: USER2
(Receiver): ELRS(CRSF), TBS(CRSF),
