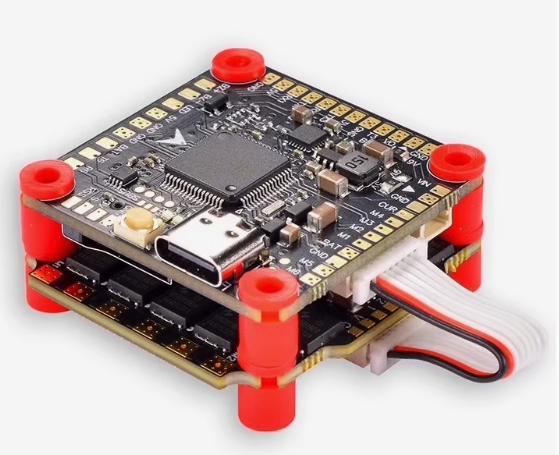

Hydra F405 + BL60A Stack
F4 Flight Controller + 60A 4-in-1 ESC | 3–6S LiPo | 36×36mm | Betaflight-Ready
The Hydra F405 + BL60A Stack is a reliable and cost-effective flight control solution for freestyle and racing FPV builds. Featuring an STM32F405 microcontroller, integrated Betaflight-configurable OSD, and a high-current 60A 4-in-1 ESC, this stack is engineered for responsive control and smooth power delivery on 3–6S power systems.
Flight Controller (FC) Features:
-
Processor: STM32F405 – Efficient 32-bit microcontroller with strong real-time processing capabilities
-
Gyroscope: MPU6500 – Proven stability with reliable motion data capture
-
OSD: Drag-and-drop configurable via Betaflight OSD (AT7456E)
-
Size: 36×36mm PCB with 30.5×30.5mm mounting pattern (M3)
-
DShot Support: Full compatibility with DShot signal protocols for ESC communication
-
Weight: ~13g (entire stack)
4-in-1 ESC (BL60A) Features:
-
Continuous Current: 60A per motor
-
Firmware: BLHeli_S for smooth, reliable throttle response
-
Input Voltage: Supports 3–6S LiPo power systems
-
Signal Protocols: Supports DShot, PWM, and OneShot
-
Built-In Protections: Includes over-current and thermal protection to safeguard ESC and motors
Key Advantages:
-
Balanced performance for both beginner and experienced pilots
-
Lightweight and compact – ideal for standard 5" freestyle or race builds
-
Simplified setup through Betaflight with built-in OSD
-
Suitable for both analog and digital FPV systems (with compatible peripherals)
Size: 36x36mm
Weight: 13g
Installation hole: 30.5x30.5mm
STM32 F405 microcontroller
Dshot support
Drag and drop OSD configured through
Betaflight
Gyroscope: MPU6500
