MatekSYS MICRO BEC 7-21V to 5V/12V-ADJ, 1.5A

  • Sale


  • Regular price $4.99

Tax included. Shipping calculated at checkout.
Found a better price?
Order in 0H, 44M, 42 Seconds (before 3pm AEST) for same day despatch.


Product Description:

Matek Micro BEC 1.5A 5V/12V Adjuastable

A Highly efficient synchronous rectified step-down switch mode converter. It offers a very compact solution to achieve 1.5A continuous output current over a wide input supply voltage (7 to 21V).

Features:
• High-Efficiency Synchronous Mode
• Wide 7V to 21V Input range
• Voltage output can be 5V or 12V adjustable. (default is 5V)
• OCP Protection and Hiccup
• Thermal Shutdown
• Output Short-circuit tolerant (5 sec/minute)

Specs:
Continuous load current: 1.5A (Max2.5A 5sec)
Vout: 5V or 12V (default 5V)
Vout Load Regulation: 2%
Max Duty Cycle: 95%
Output Ripple: 20mV (Vin=16V, Vout=12V@1.5A)
                        40mV (Vin=16V, Vout=5V@1.5A)
Pins distance: 2.54mm
Size: 17x11x3mm

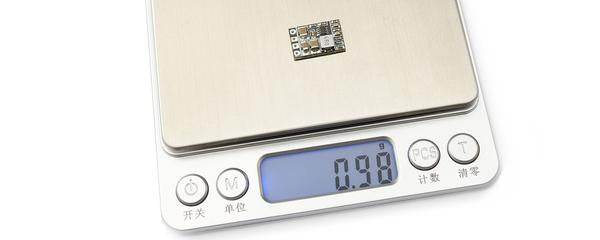

Weight: 1g
