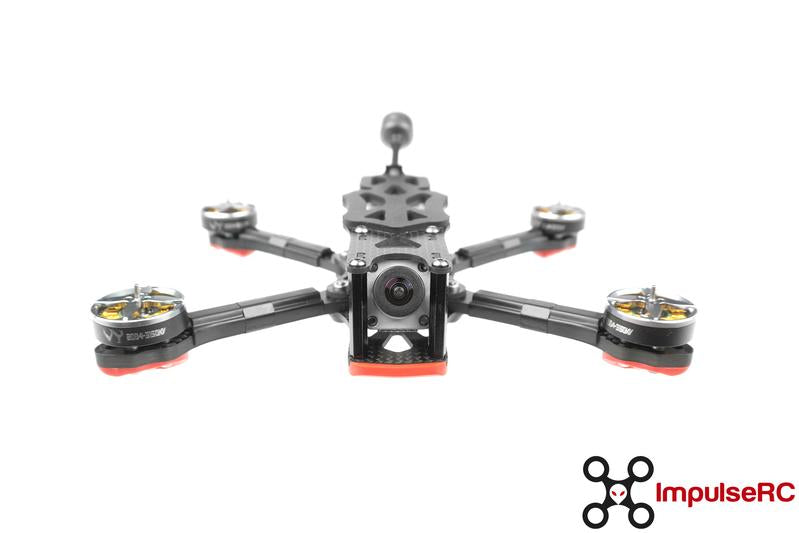

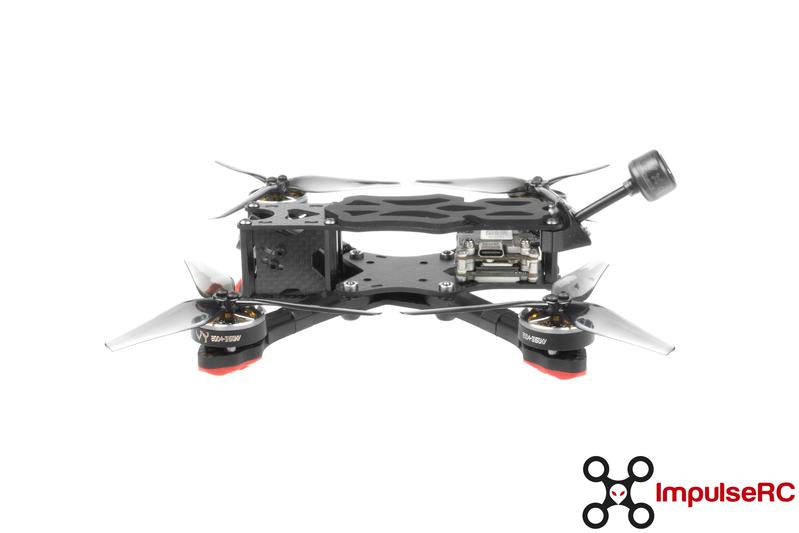

THE IMPULSERC MICRO APEX TAKES EVERYTHING YOU KNOW AND LOVE FROM THE WILDLY POPULAR FULL-SIZE APEX, THEN SHRINKS IT DOWN WITHOUT COMPROMISE TO DELIVER BY FAR THE BIGGEST LITTLE FRAME ON THE MARKET.
The meticulous transformation and extreme attention to detail has created a frame which incorporates years of design experience.
Equally comfortable as a sub-250g long range explorer, or a full-blooded freestyle machine capable of handling the harshest environments.

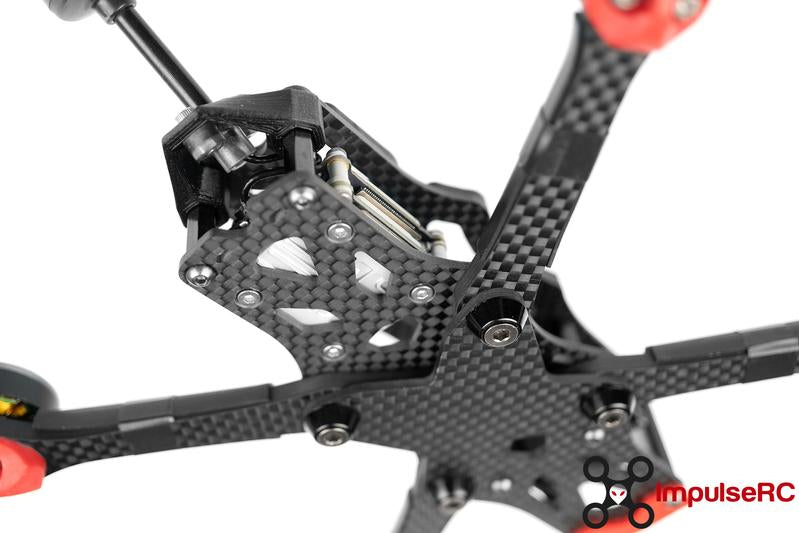

The Micro Apex incorporates all of the unique innovations pioneered by ImpulseRC and now widely imitated. From the compressed-X arm geometry, integrated camera tilt, front box-section and split main plate design, to our custom shoulder bolts and arm locking key. At the centre of mass where the arms meet there is a massive 8mm of carbon fibre, taking the stiffness of a micro frame to a new dimension so you can enjoy unsurpassed flight characteristics at this prop size.
You can expect zero arm slop or movement, zero vibration or resonance, and of course that proven ImpulseRC durability you can always trust. All backed up with our full crash damage warranty that covers all carbon fibre and metal parts for 1 year from the date of purchase.
- Full crash damage warranty on all parts for 1 year

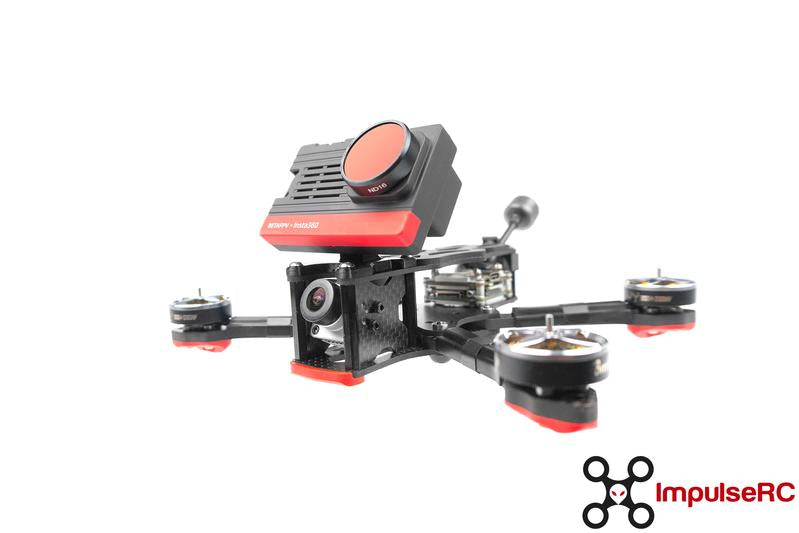

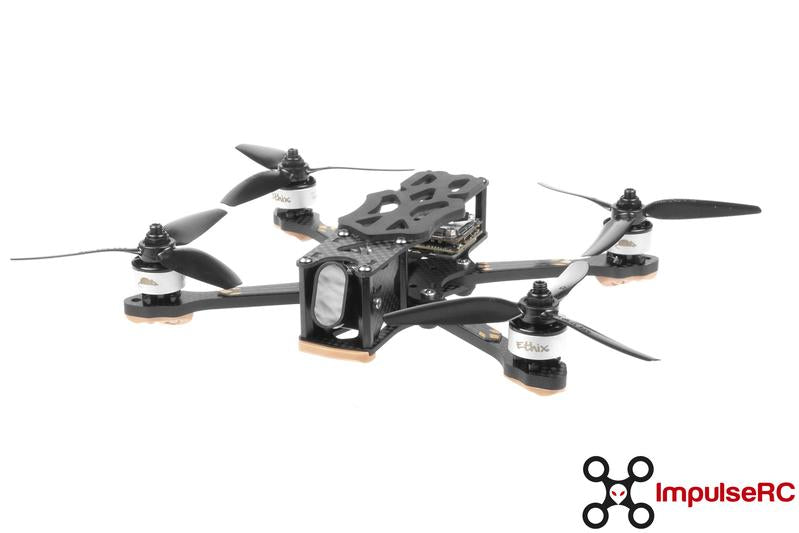

- Perfect for Caddx Vista, 4K Tarsier or classic analog setup
- No props in shot of flight camera with 3” arms
- Dual stack, 20x20 M3 and M2 centre, 20x20 M2 rear

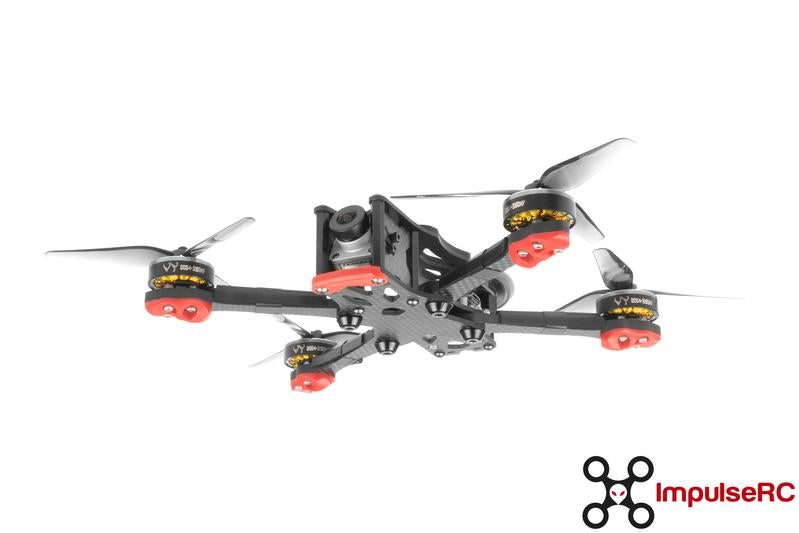

- Injection moulded arm skids and front bumper
- Injection moulded fitted wire guards to protect from prop strikes
- Two battery pads included, 2mm rubber and ultra-light hook pad
- Custom fitted Racewire available for 4” arms

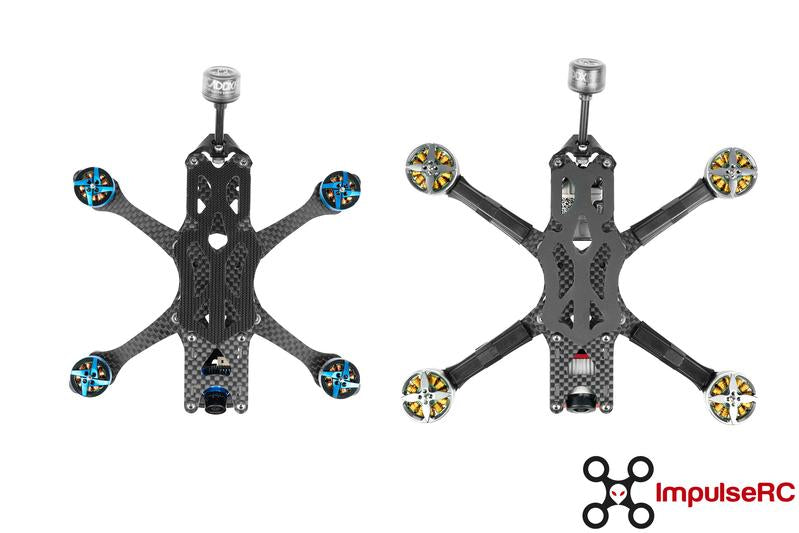

- 3” frame weight 58g, carbon fibre + hardware
- 4” frame weight 61g, carbon fibre + hardware
- 4mm thick arms, single shoulder bolt per arm
- 2mm thick upper and lower main plates
- 1.5mm thick top and camera plates

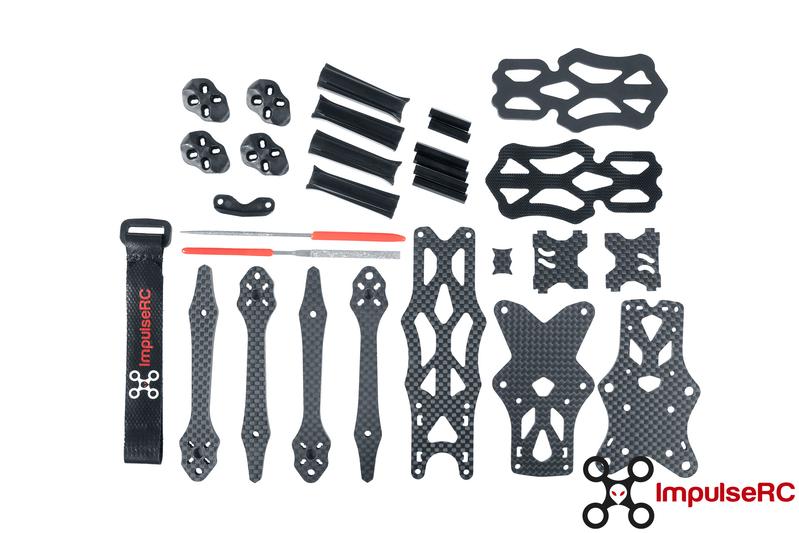

- (1x) Micro Apex Arm Key CF 3.5mm
- (1x) Micro Apex Top Plate CF 1.5mm
- (1x) Micro Apex Main Lower CF 2mm
- (1x) Micro Apex Main Upper CF 2mm
- (2x) Micro Apex Cam Side Plate CF 1.5mm
- (4x) Micro Apex 4" Arm CF 4mm
- (1x) Micro Apex Hook LIPO pad - BLACK
- (1x) Micro Apex LIPO pad - 2mm BLACK
- (1x) Diamond File - Flat (Mini)
- (1x) Diamond File - Round (Mini)
- (1x) Lipo Strap - Small - ImpulseRC
- (1x) Micro Apex Plastics Kit - BLACK
- (1x) Micro Apex Arm Covers - BLACK - (4 Pack)

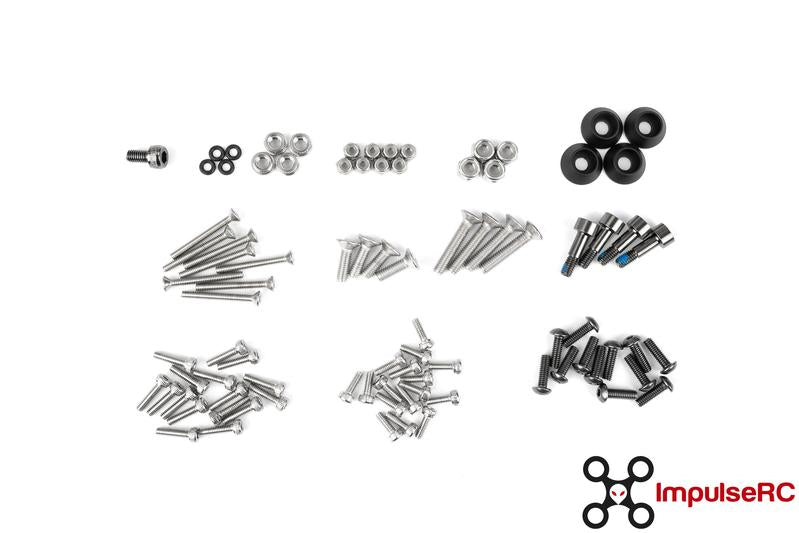

- (4x) M2.5 26mm Standoff - Aluminium - Black
- (2x) M2.5 20mm Standoff - Aluminium - Black
- (4x) M3x11mm Shoulder bolt - High Tensile Carbon Steel - Gunmetal
- (4x) 3x10mm Cone Washer - Aluminium - Black
- (4x) M3 Press Nut - Stainless Steel
- (1x) M3x6mm Cap - High Tensile Carbon Steel - Gunmetal
- (12x) M2.5x8mm Button - High Tensile Carbon Steel - Gunmetal
- (16x) M2x6mm Cap - Stainless Steel
- (16x) M2x8mm Cap - Stainless Steel
- (4x) M3x10mm Countersunk Screw - Stainless Steel
- (4x) M3x16mm Countersunk Screw - Stainless Steel
- (8x) M3x18mm Countersunk Screw - Stainless Steel
- (8x) M2 Lock Nut - Stainless Steel
- (4x) M3 Lock Nut - Stainless Steel
- (4x) 1.8x1mm O-ring
