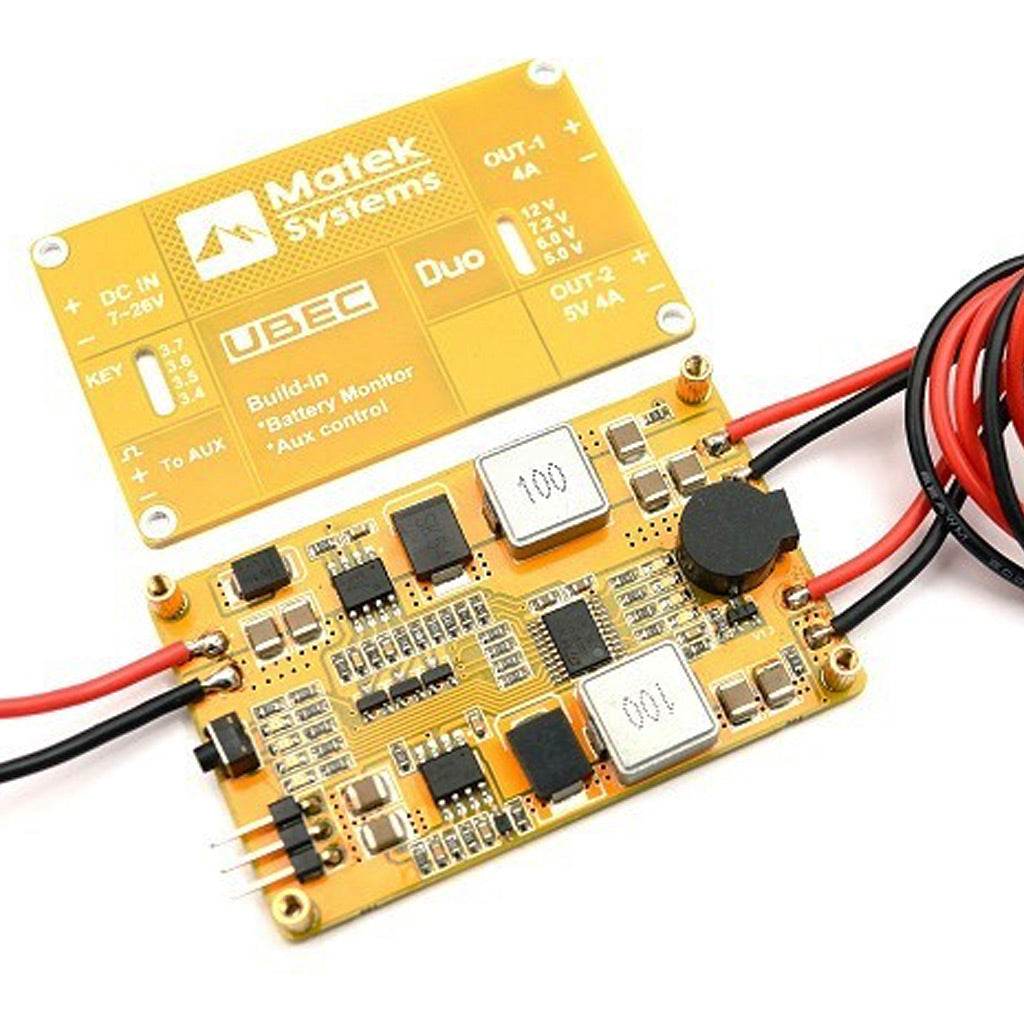

MatekSYS UBEC DUO 4A-12V & 4A-5V

  • Sale


  • Regular price $34.99

Tax included. Shipping calculated at checkout.
Order in 0H, 44M, 42 Seconds (before 3pm AEST) for same day despatch.


mateksys logo

Matek UBEC DUO 4A/5~12V & 4A/5V

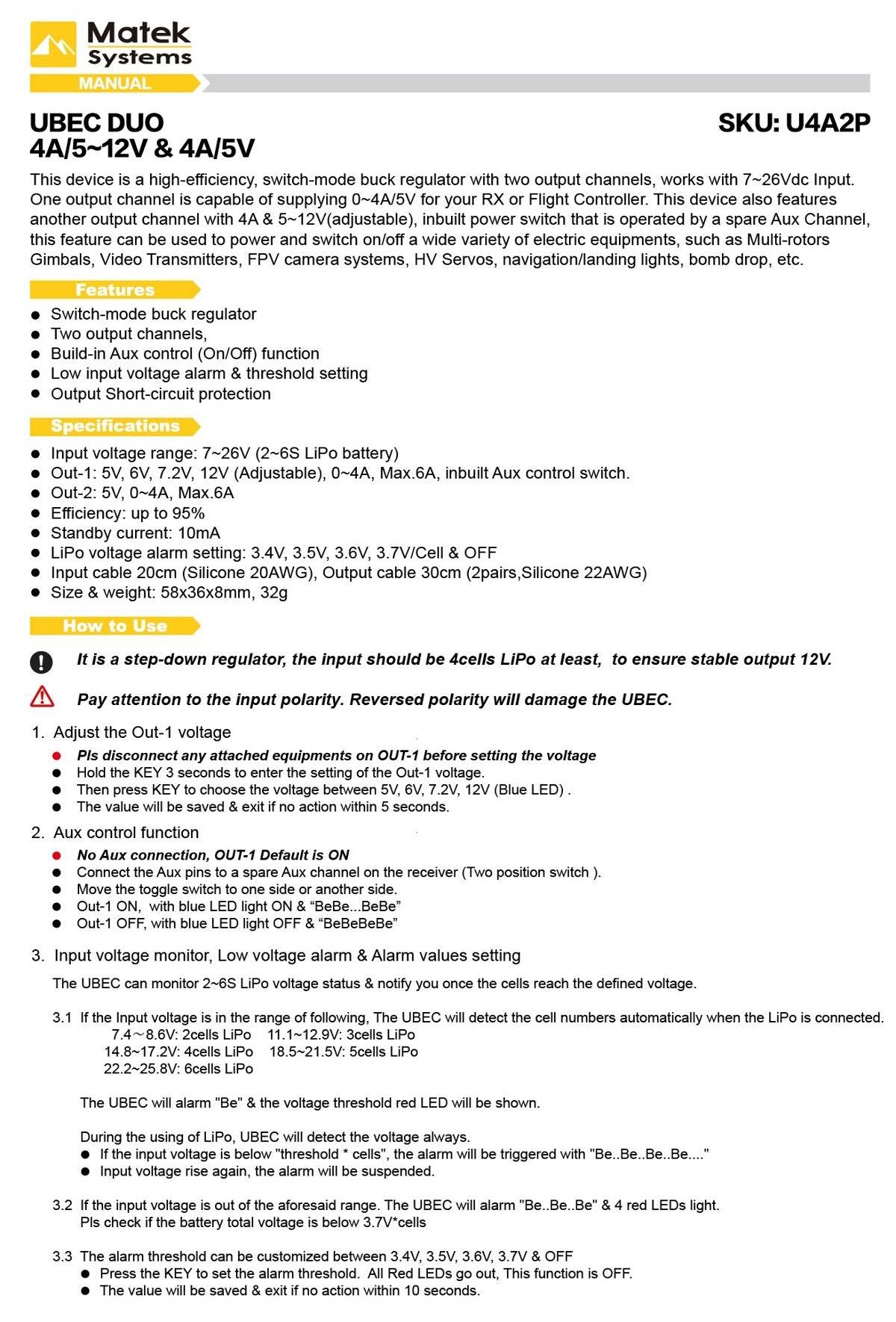

UBEC DUO Manual

This device is a high-efficiency, switch-mode buck regulator with two output channels, works with 7~26Vdc input. One output channel is capable of supplying 0~4A/5V for your RX or Flight Controller. This device also features another output channel with 4A & 5~12V (adjustable), inbuilt power switch that is operated by a spare Aux Channel, this feature can also be used to power and switch on/off a wide variety of electric equipment, such as Multi-rotor Gimbals, Video Transmitters, FPV camera systems, HV Servos, navigation/landing lights, bomb drops, etc.

Features:

• Switch-mode buck regulator
• Two output channels
• Built-in Aux control (On/Off) function
• Low input voltage alarm & threshold setting
• Output Short-circuit protection

Specs:

Input voltage range: 7~26V (2~6S LiPoly battery)
Out-1: 5V, 6V, 7.2V, 12V (adjustable), 0~4A, Max 6A, inbuilt Aux control switch
Out-2: 5V, 0~4A, Max 6A
Efficiency: up to 95%
Standby current: 10mA
LiPoly voltage alarm setting: 3.4V, 3.5V, 3.6V. 3.7V/Cell & OFF
Input cable: 20cm (Silicone 20 AWG)
Output cable: 30cm (2pairs, Silicone, 22AWG)
Size: 58x36x8mm
Weight: 32g
