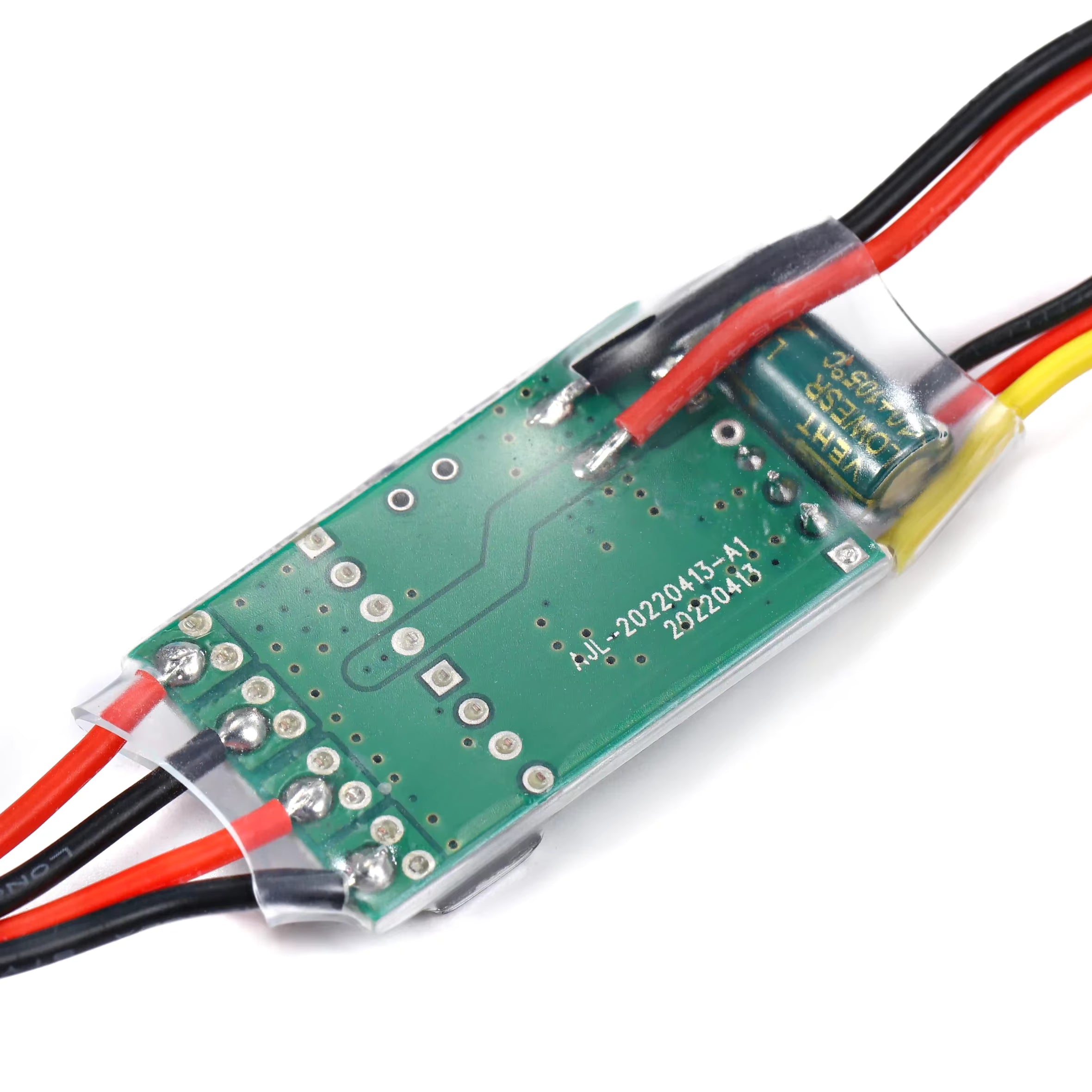

Dual-way bidirectional control for RC models This ESC 2s-3s LiPo 5A supports bidirectional operation, ideal for RC boats and tanks requiring precise speed regulation and smooth performance under varying loads.
Compatible with brushed motors Designed for use with 130 and 180 brushed motors, this speed controller ensures reliable power delivery and consistent operation in small-scale RC applications.
High-quality voltage regulator Functioning as a voltage regulator, this ESC maintains stable output, protecting sensitive components from voltage spikes during operation.
Compact and lightweight design With a package size of 10 x 10 x 10 cm and a weight of only 0.050 kg, it’s easy to store, ship, and integrate into tight RC model spaces.
Mixing mode (default) (throttle/steering mode): 2 or 3 channels (2 channels are recommended, because 2 channels automatically return to the center) to control the throttle, 1 channel (or 4 channels) to control the speed difference steering, the throttle ratio is 100%, and the steering Scale 100%, steering priority. Suitable for: Tanks (in this mode, gun control can play tanks), 4-wheel drive cars
Dual independent: it is equivalent to two independent ESCs
Two-way synchronization: In the mixing mode, if the single yellow wire is not connected, or the single yellow wire is connected to the receiver "-", the two motors will be controlled by the throttle synchronously.
parameter:
Support voltage/current: 6v-14v single 5A, single peak 7A (for 2/3S lithium battery)
ESC size/weight: 33*20*6.5mm /12g (including cable)
With runaway protection (loss of signal (in an accident, the signal line is broken), for safety, motor protection, the accelerator needs to be returned to the center and unlocked again.
Power failure protection: The power supply voltage is lower than 4V, the ESC restart protection (for example: high current discharge, the voltage drop of the battery with poor performance is too large, the ESC protection, the motor stops after the protection, and after the motor stops, the battery voltage recovers, Back to the neutral point, you hear the motor unlock again)
There is overcurrent protection (but repeated overcurrent in use may also burn. With overheat protection (130 degrees)
Each group of motor wires is directly connected to the motor, do not mix it up, otherwise it will damage the ESC
The bec outputs 5v and the maximum is 1.5A to meet your needs for power supply to the receiver and flight control (Note: the onboard microcontroller is also powered by 5V, if you plug the 2S lithium battery <7.4V> directly into the receiver, the microcontroller will burn in seconds.
