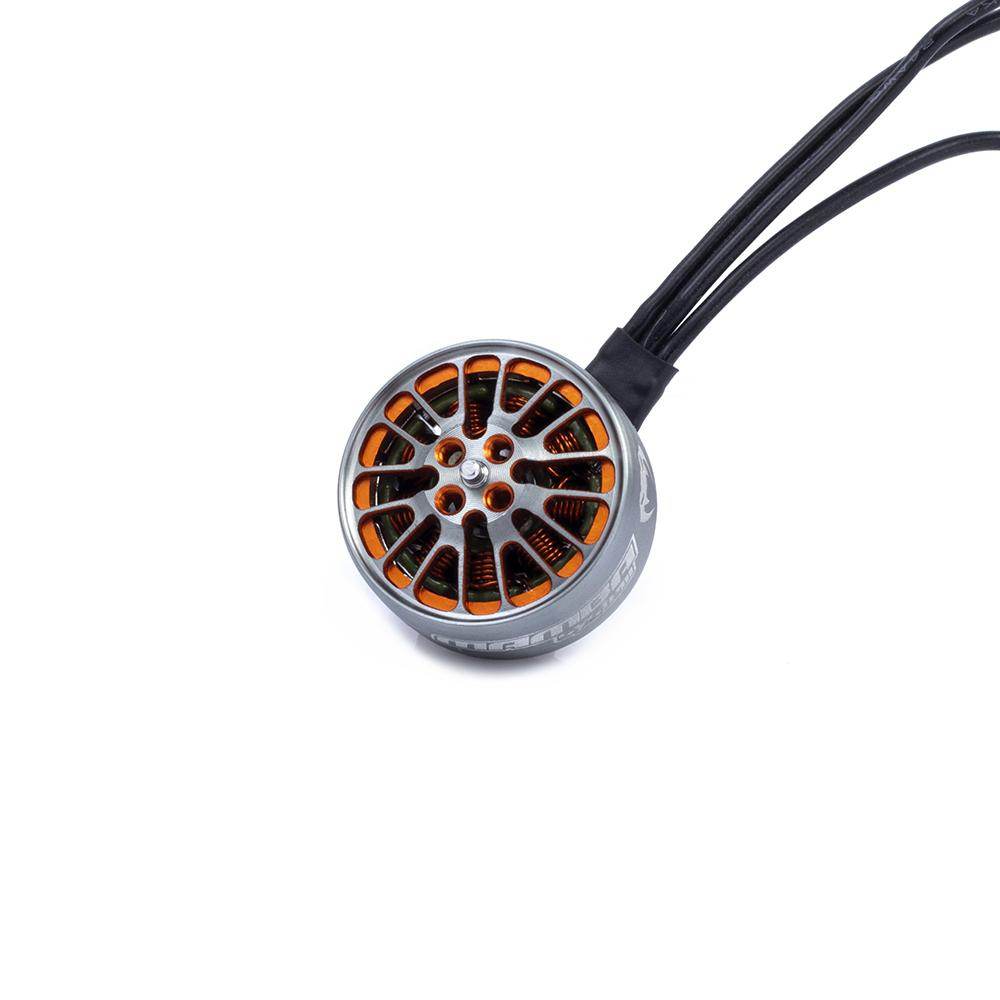

MAMBA TOKA 1606 2700/3750KV BRUSHLESS MOTOR FOR FPV RACING DRONE

  • Sale


  • Regular price $20.99

Tax included. Shipping calculated at checkout.
Found a better price?
Order in 0H, 44M, 42 Seconds (before 3pm AEST) for same day despatch.


SPECIFICATION:

MAMBA TOKA 1606 2700KV MOTOR

Overall Dimension:Φ22.2×15mm
Shaft Diameter:1.5mm
Installation hole position :12×12mm,M2
Prop: 3inch~4inch
Bearing: 5*2*2.5
Diameter:2mm
Lead Wire Size:24AWG ×150mm
Configuration:9N12P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage: 3~6S (12.6V~25.2V)
Peak Current: 17.6A
ldle Current:10V/0.5A
Maximum Power: 409W
Internal Resistance:164Ω



MAMBA TOKA 1606 3750KV MOTOR

Overall Dimension: Φ22.2×15mm
Shaft Diameter:1.5mm
Installation hole position:12×12mm,M2
Prop: 3inch~4inch
Bearing: 5*2*2.5
Diameter:2mm
Lead Wire Size:24AWG ×150mm
Configuration:9N12P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage: 3~4S (12.6V~16.8V)
Peak Current: 21.1A
ldle Current:9v/0.8A
Maximum Power: 338W
Internal Resistance:114Ω
